Final assembly of underride protection on the body
Task
Screwing the underride protection. The tightening direction is from bottom to top. A device must be provided at each of the vehicle’s corner points. The delivery stroke must be pneumatic, and the horizontal axes must be pneumatically braked during screwing.
Special feature: Underbody
Torque: 2x 1000Nm / 2x 230Nm
Payload: 2x 50 kg / 2x 18 kg
Final assembly
Equipment
Equipment

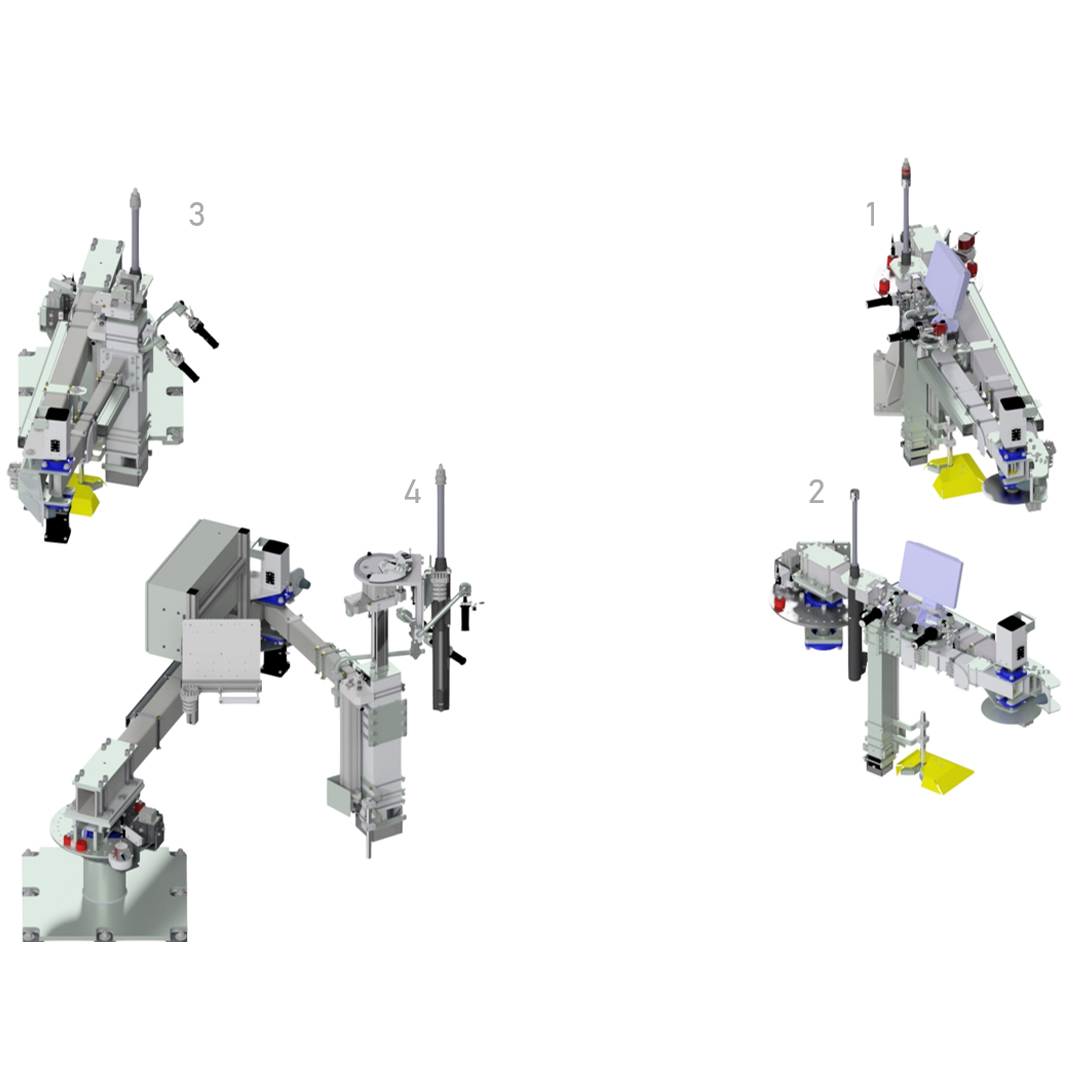

1
handy-arm 500
2
handy-arm 500
3
handy-arm 750
4
handy-arm 750
handy-arm

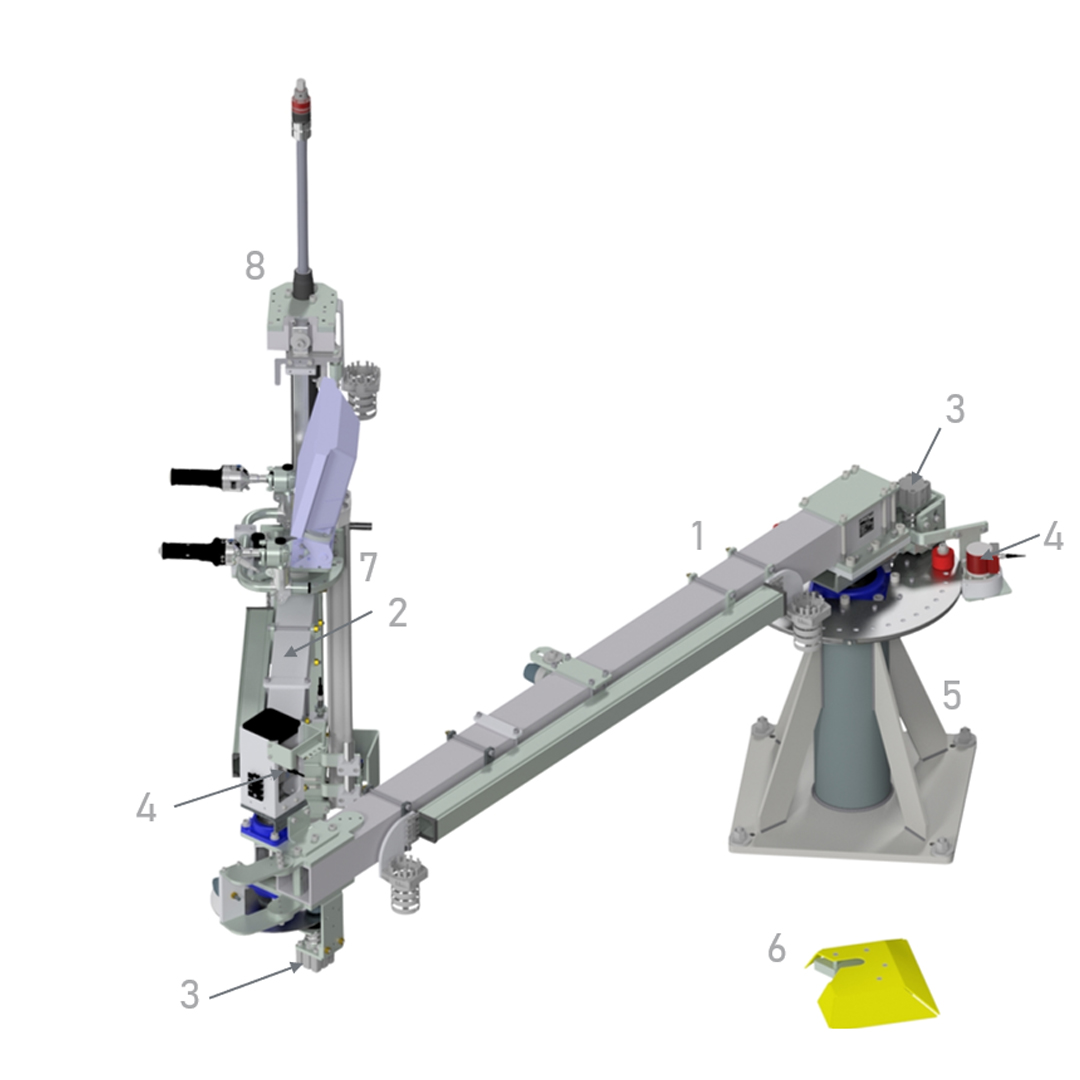

Equipment
Equipment
1
Boom 1
2
Boom 2
3
Brake pneumatic
4
Rotary encoder
5
Stand
6
Park position locked
7
Feed pneumtisch
8
Adapation system handy-arm
Adaptation system

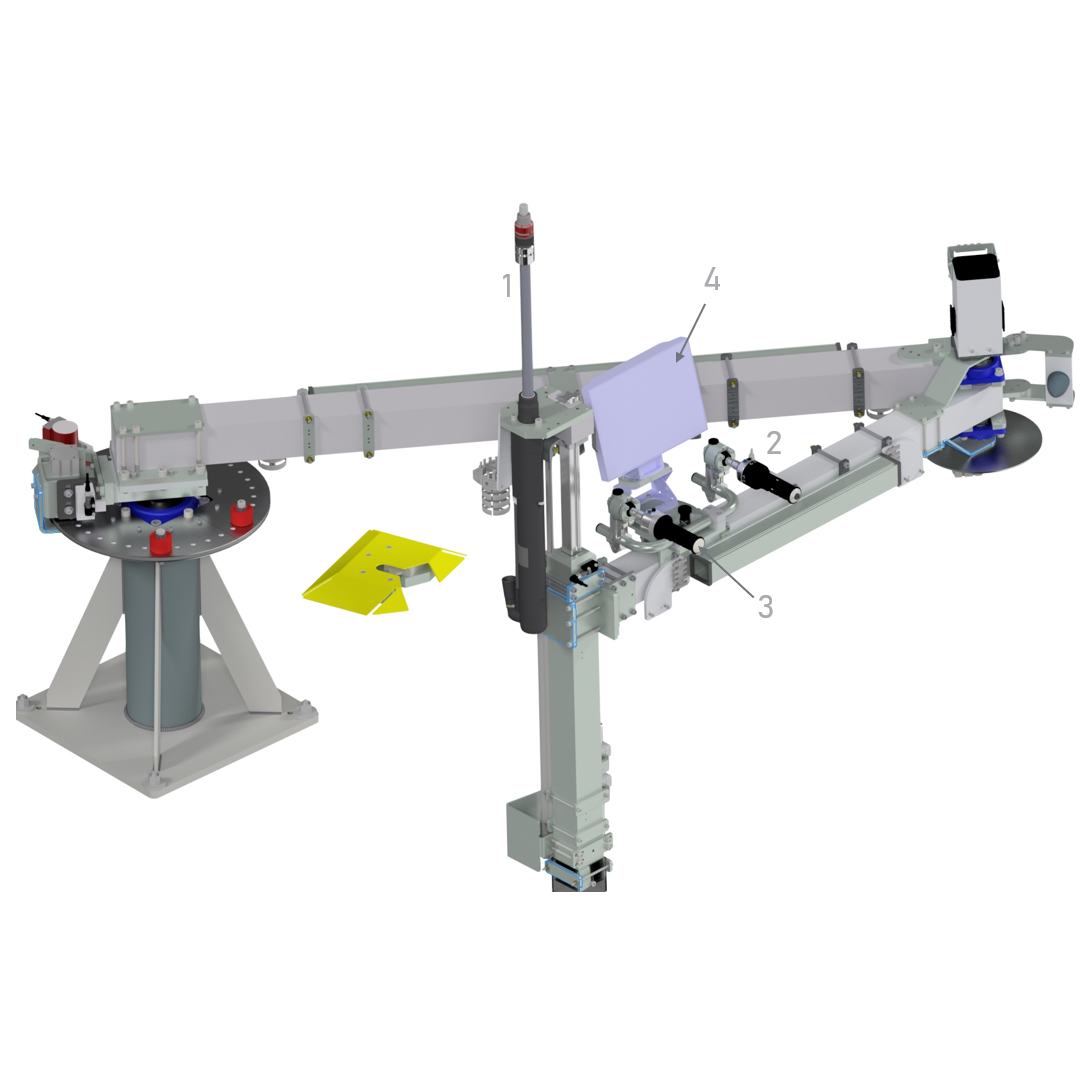

Equipment
Equipment
1
Output over-springed
2
Operating handle
3
Operating handle pneumatic
4
Screen
