Screw gearbox control unit
Task
Screwing the control unit and bell to the gearbox. A total of 15 screw connections must be made on the control unit, for the rework of which a separate handling device must be used. In addition, the bell must be screwed to the gearbox. All work takes place in one station under cramped conditions.
Special feature: 15-fold adaptation
Torque: 15x 55Nm
Payload: 150 kg

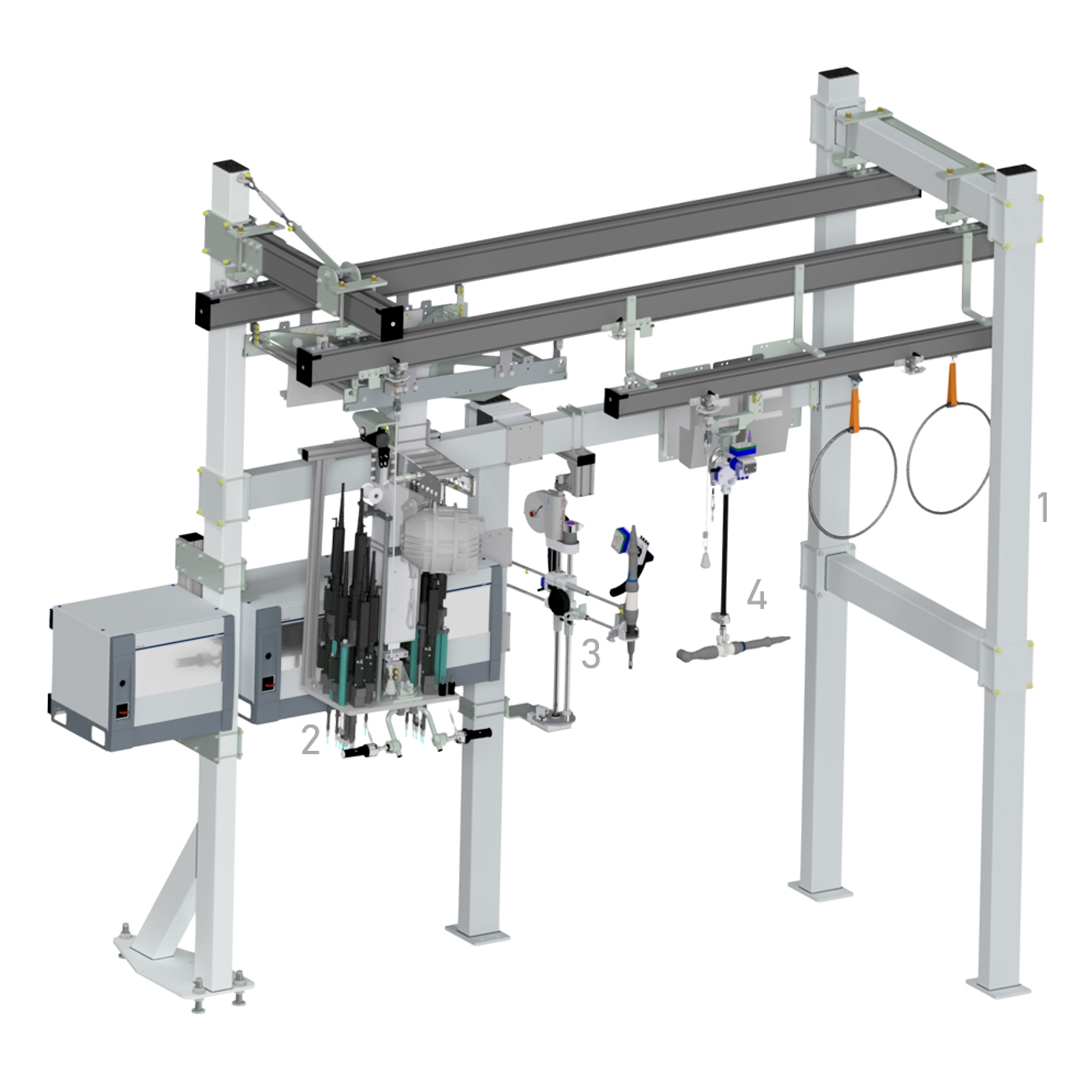

handy-lift
Equipment
Equipment
1
Column frame
2
handy-lift 1500
3
handy-flex 200
4
carbo-arm 055m

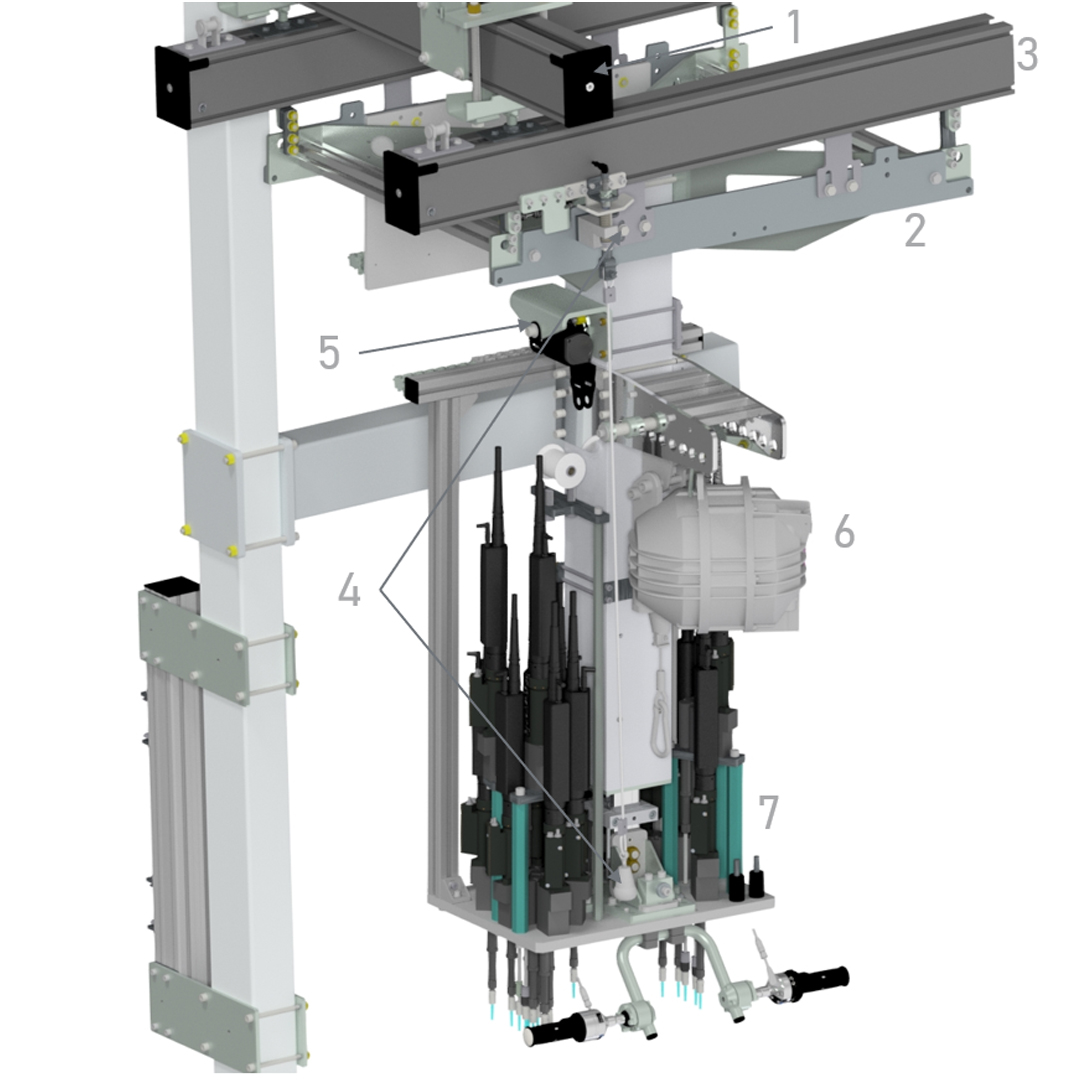

handy-lift
Equipment
Equipment
1
crane rail
2
trolley
3
carne bridge
4
Locking parking position mechanical
5
Fall protection with pulley
6
Weight compensation
7
Adaptation system handy-lift
Adaptation system
Equipment
Equipment
1
Operating handle
2
Feed Z-axis pneumatic

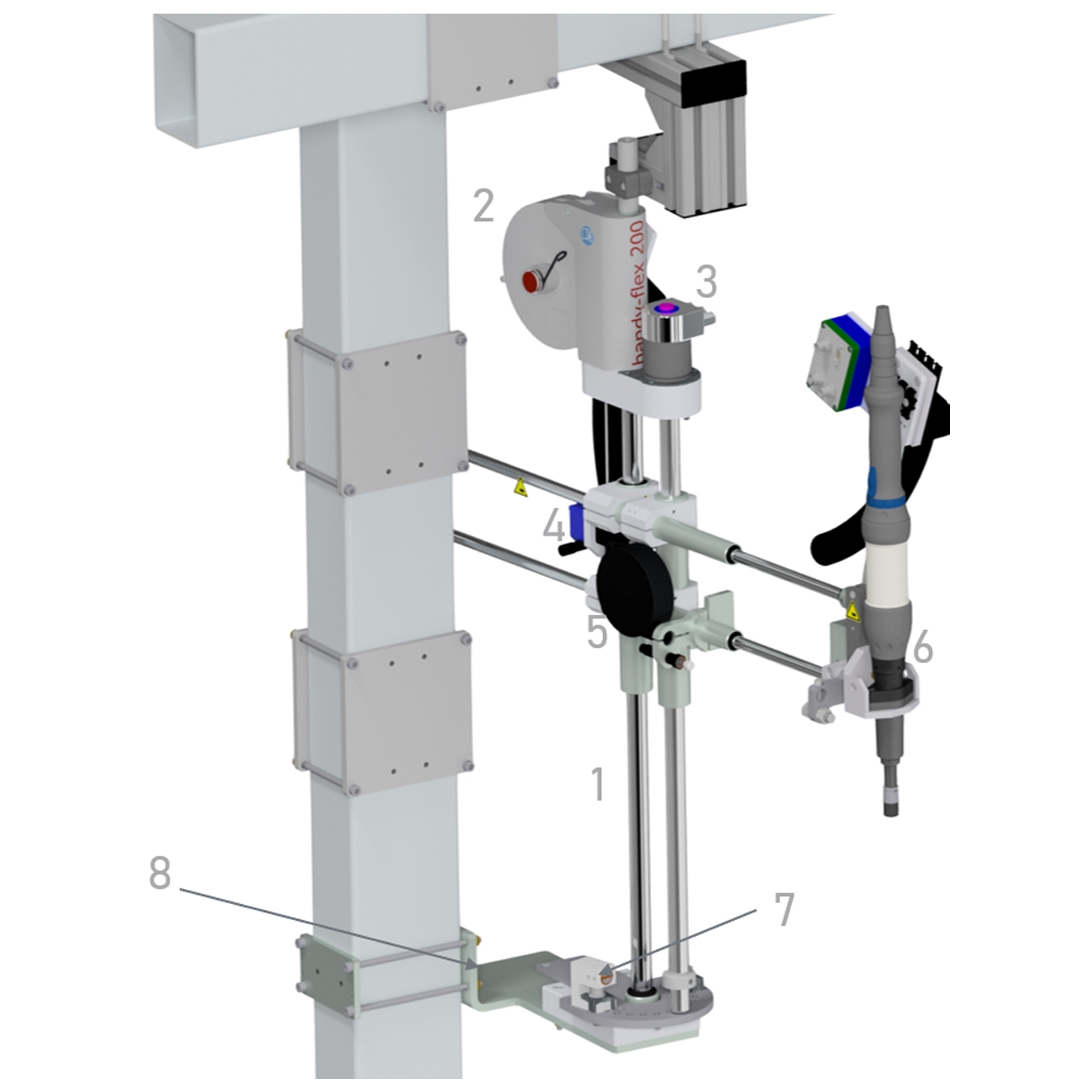

handy-flex
Equipment
Equipment
1
handy-flex 200
2
Weight compensation
3
Displacement measuring system rotary axis
4
Displacement measuring system horizontal
5
Retraction spring-loaded
6
Clamping piece
7
Parking position magnetic
8
Clamping console

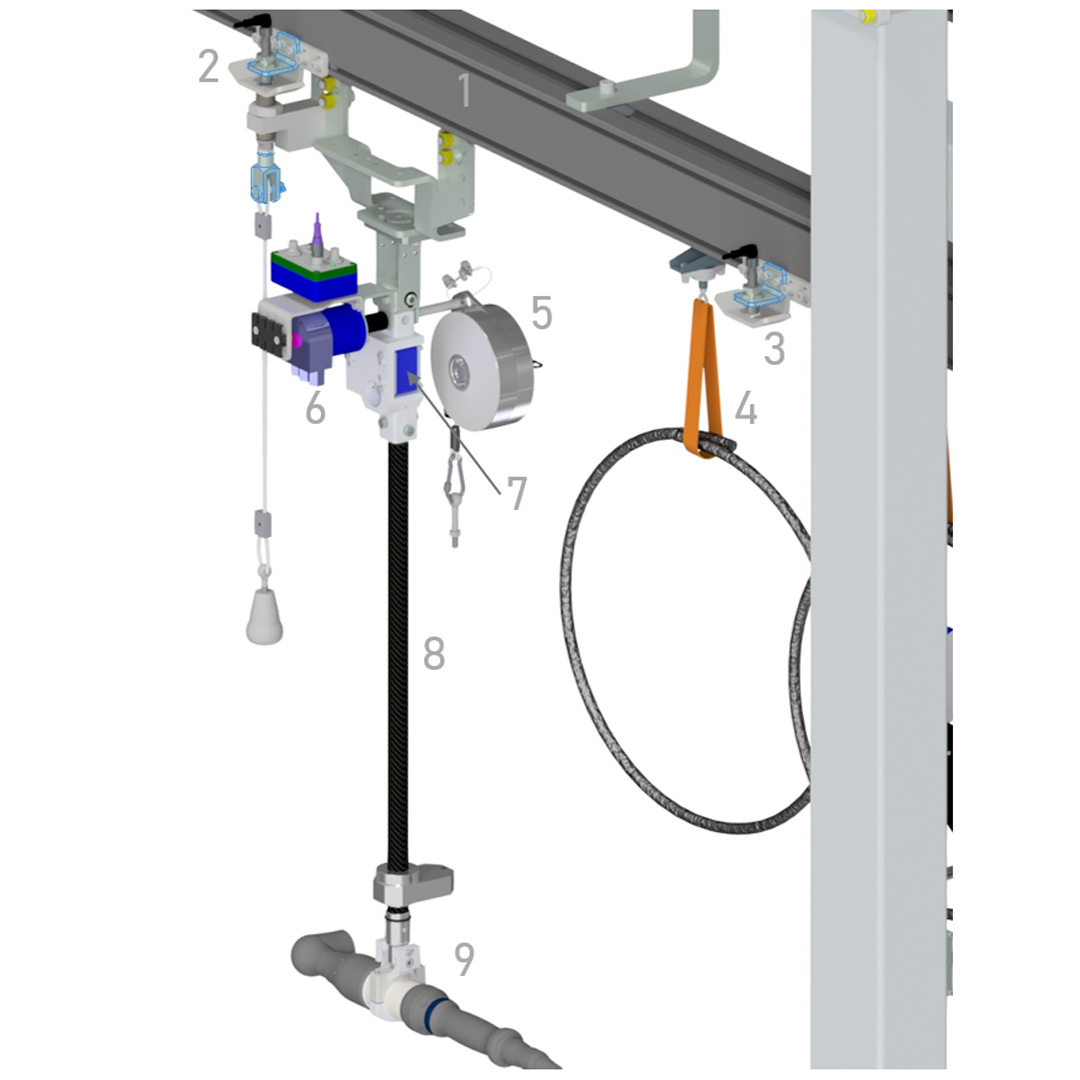

carbo-arm
Equipment
Equipment
1
crane rail
2
Locking parking position mechanical
3
Locking screwing position mechanical
4
Energy supply
5
Weight compensation
6
Displacement measuring system swivel axis
7
Displacement measuring system Z-axis
8
carbo-arm 055m
9
Clamping piece
