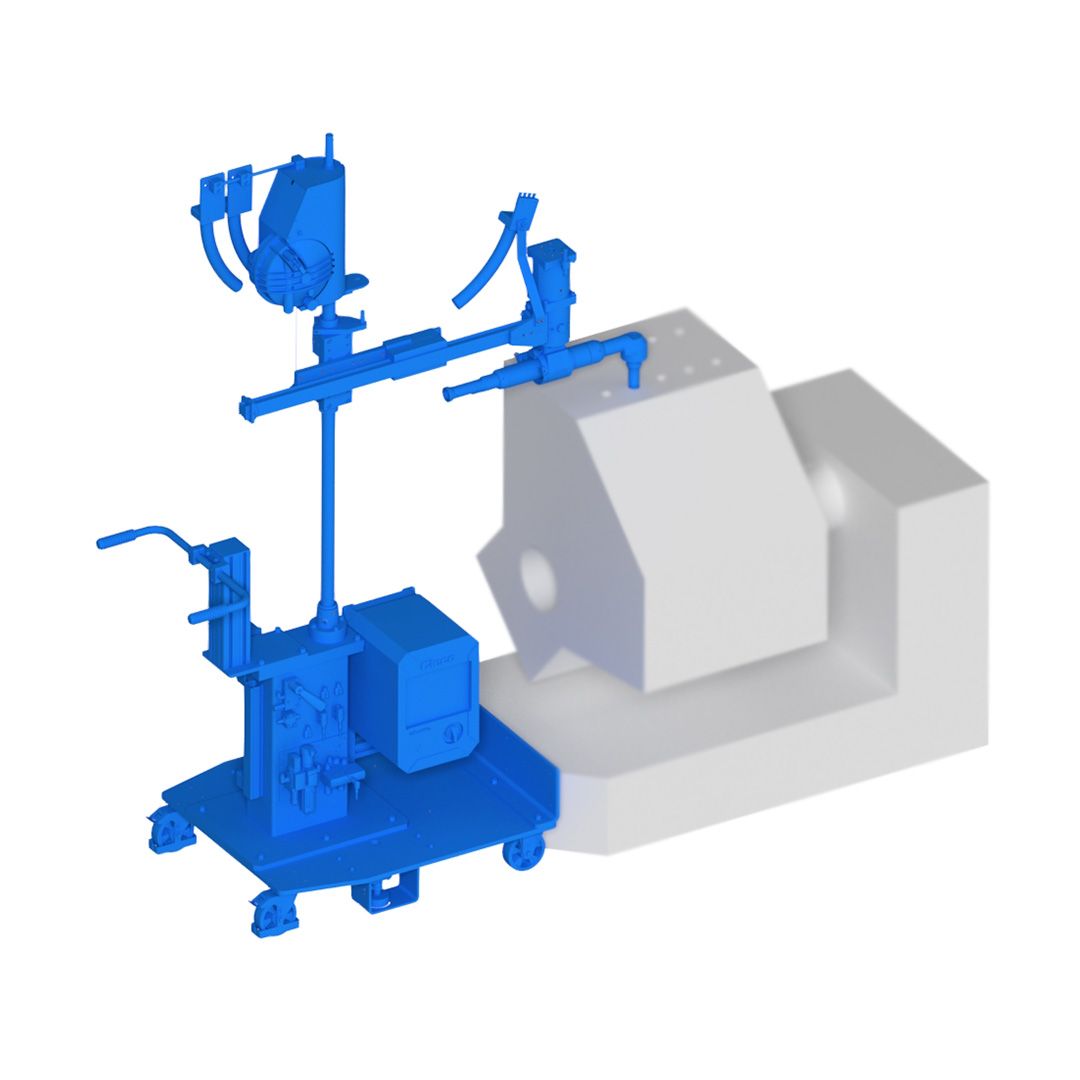

Motor assembly Various components on the motor
Task
Four screws must be screwed in simultaneously. The handling device is guided manually by the operator to the screwing point, and the screwing process then takes place semi-automatically until it returns to the parking position. Neither a steel structure nor a rail system is available; a free-standing design is required. The cooling pipe is screwed in manually in the same station, without recording the torque.
Special feature: Semi-automatic
Torque: 4x 50Nm
Payload: 50 kg
handy-lift
Equipment
Equipment
1
handy-lift 400c
2
Weight compensation
3
Adaptation system
4
Operating handles
5
Screwdriving control
6
Pneumatic control
7
Transport carriage
8
Pneumatic brake
Adaptation system
Equipment
Equipment
1
Pneumatic brake
2
Rotary unit
3
Rotary unit with detent
4
Spindle
5
Socket insert
