In the area of toolholder systems, we offer a comprehensive selection of Components specifically designed to optimally complement and expand your handling systems. This includes, among other things, adaptations, rotary units, swivel tool adaptors, rigid tool adaptors and accessories.. These elements are not only technically sophisticated, but also individually configurable to seamlessly integrate into your existing processes.

Swivel bearing

Bolting handlebars

– Adjustable joint

– Rotary unit

– Operating handle

– Flat drive

Battery

Rework station



– Rotary unit with detent

– Operating handle with Bowden cable

– Rotary unit with detent

– Electrically isolated drive

– Electrically isolated quick-change chuck

E-motor

Screw in PA line

– Rotary unit

– Position query

– Rotary unit motor axis

– Magnetic socket wrench

– Free-running sleeve

E-motor

Screw the support frame with two spindles



– Washer

– Free-running protective sleeve

– Angle head

– Protector

– Two-hand operating handle

Axis

Spring link screwing

– Rotary unit

– Operating handle

– Angle head

– Rotary encoder

– Pneumatic brake

Axis

Spring link screwing

– Rotary unit

– Operating handle

– Angle head

– Rotary encoder

– Pneumatic brake

Rotary units

The rotary units offer flexible rotation options and expand the range of motion of your handling systems – ideal for complex assembly or machining tasks.

Swivel tool adaptor

Swivel tool adaptors offer the possibility to rotate the tool during use or to turn it into a specific position.

Rigid tool adaptor

Rigid tool adaptors are designed for maximum stability and repeatability. They hold the tool firmly in a defined position and are ideally suited for processes where no rotation is required.

Accessories

The matching accessories extend the functionality of the main system and enable flexible adaptation to different requirements.

Tightening direction Horizontal

jh-Code
Screwdriver type
Swivel angle DEVA*
Detent / Interlock DEVA*
Query detent / interlock DEVA*
Tool adaptor screwdriver
Detent / Interlock DEMA*
Query detent / interlock DEMA*
BAS005
Hand screwdriver with angle head
90°, 0°, - 90°
rigid
BAS007
Hand screwdriver with angle head
0° - 270°
rigid
BAS008
Hand screwdriver with angle head
0° - 270°
rotatable 30° - 300°
BAS009
Hand screwdriver with angle head
rigid

* DEVA = Rotary unit around vertical axis | DEMA = Rotary unit around motor axis of the hand screwdriver

Tightening direction Vertical

jh-Code
Screwdriver type
Tool adaptor screwdriver
Swivel angle DEVA*
Query swivel angle
DEVA*
Detent / Interlock DEVA*
Locking DEVA*
Query detent / Interlock DEVA*
Operating handles
BAS004
Hand screwdriver with angle head
rigid
37° - 335°
2 swivel angles with inductive sensors
2 swivel positions mechanically via indexing lever
BAS006
Hand screwdriver with angle head
rigid
90°, 0°, - 90°
BAS010
Hand screwdriver with angle head
rigid
BAS011
Hand screwdriver or built-in spindle with straight drive
rigid
with direct connection
BAS012
Built-in spindle with offset drive
rigid
with handle bracket
BAS013
Hand screwdriver or built-in spindle with straight drive
rigid
with handle bracket
BAS014
Hand screwdriver with angle head
rigid
0° - 270°
stepless with rotary encoder
stepless pneumatically via brake

* DEVA = Rotary unit around vertical axis

Tightening direction Horizontal and Vertical

jh-Code
Screwdriver type
Swivel angle DEVA*
Detent / Interlock DEVA*
Query detent / Interlock DEVA*
Locking DEVA
Tool adaptor screwdriver
Detent / Interlock DEMA*
Query detent / Interlock DEMA*
BAS001
Hand screwdriver with angle head
90°, 0°, -90°
rotatable 30° - 300°
BAS003
Hand screwdriver with angle head
rotatable 30° - 300°
BAS015
Hand screwdriver with angle head
0° - 270°
stepless with rotary encoder
stepless pneumatically via brake
rotatable 30° - 300°

* DEVA = Rotary unit around vertical axis | DEMA = Rotary unit around motor axis of the hand screwdriver

Rotary units

Designation
Swivel angle
Locking swivel positions
Max. torque absorption
Further equipment

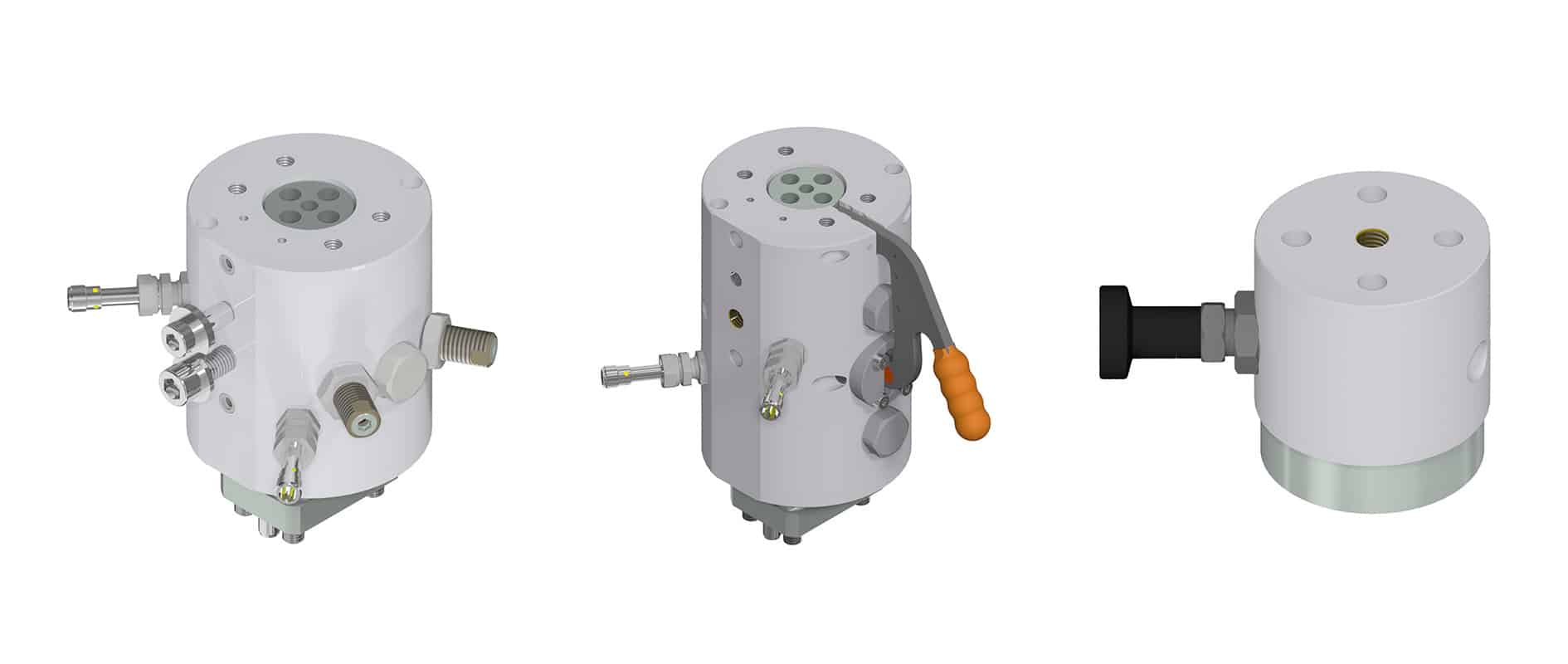

Rotary unit DEVA
0° - 335°
Locking
Detent
Interlock
300 Nm - 500 Nm
Displacement measurement system
Queries
Brake

Swivel tool adaptors

Designation
Swivel angle
Locking swivel positions
Max. torque absorption
Max. Ø clamping sleeve
Further equipment

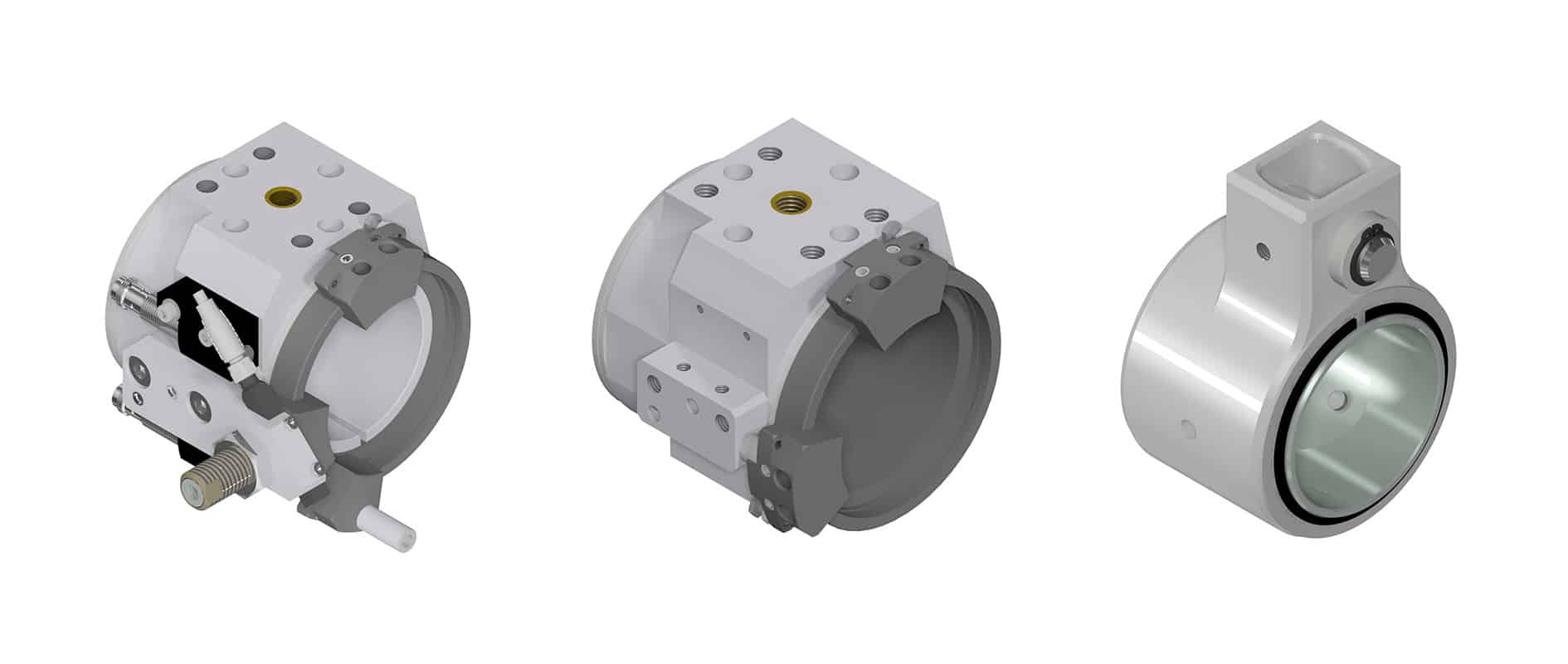

Rotary unit DEMA
30° - 300°
Interlock
Detent
100 Nm - 500 Nm
46 mm - 65 mm
Queries

Rigid tool holders

Designation
Description

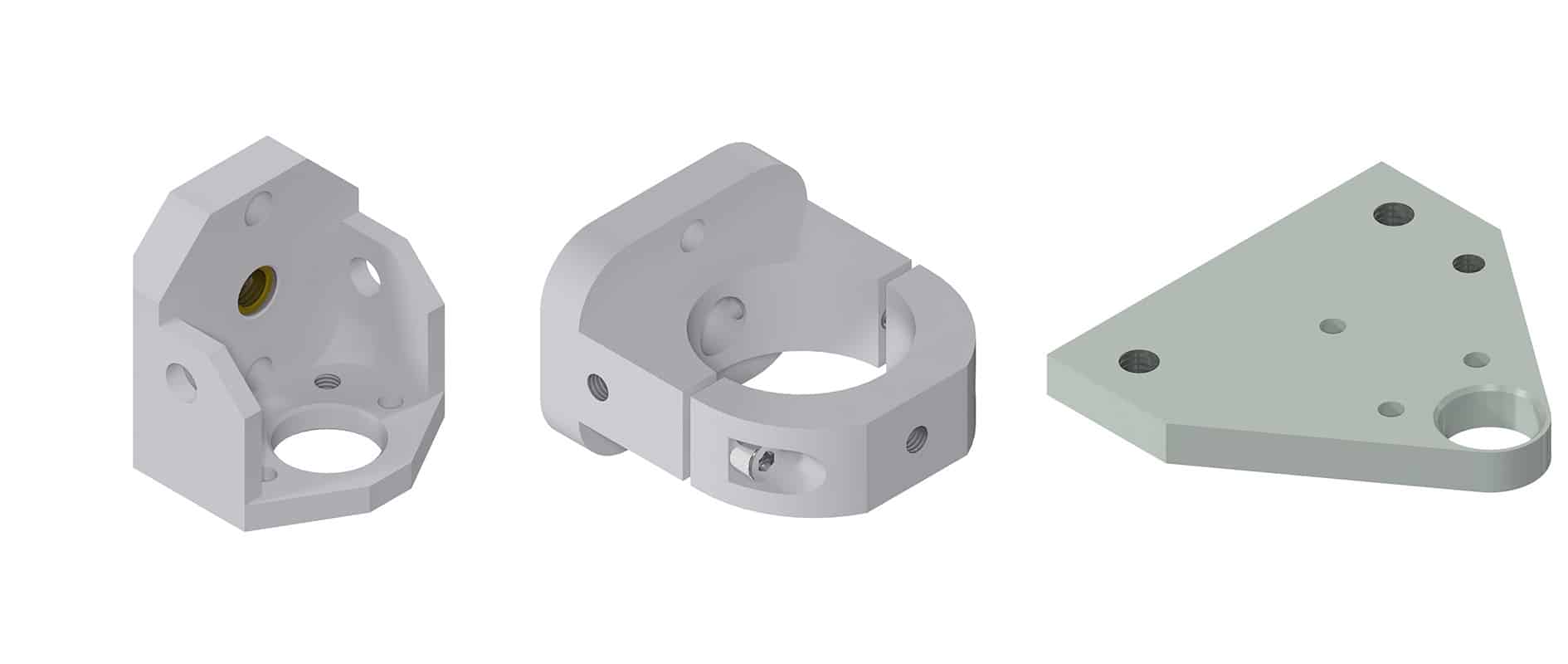

Adapter angle | Adapter plates | Clamping pieces

Adapter angle:

Enables the integration of the built-in spindle or the hand screwdriver with straight drive.

Adapter plate:

Serves as a tool adaptor for built-in spindles with offset drive.

Clamping piece:

Offers a secure tool adaptor for hand angle screwdrivers

Accessories

Pendulum joint

Connections | Distances | Strips

Adapter

Brakes

Operating handles

Connections

Remote staking out

Protectors
