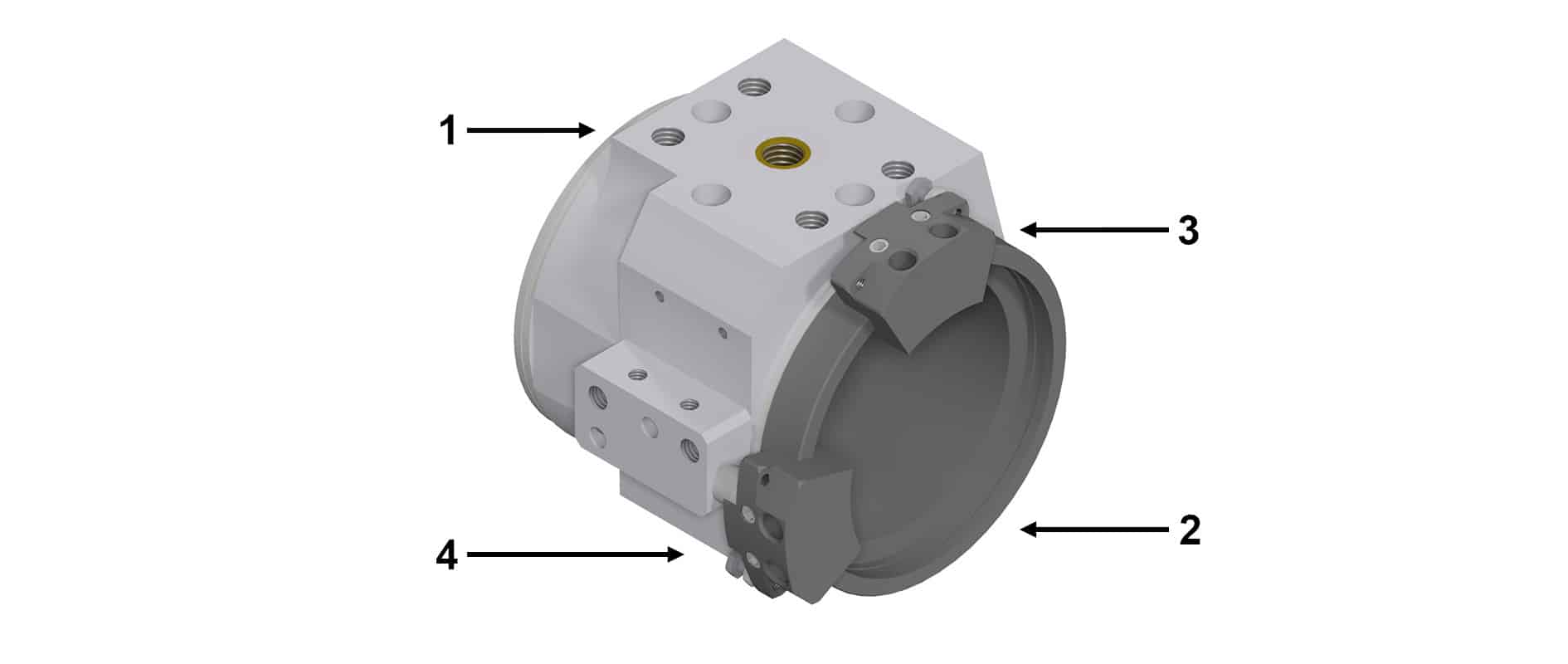

Our DEMAunits are specialized rotary units used in industrial applications for the precise positioning and rotation of tools or components. The DEMA unit, short for Dreheinheit um die Motorachse (rotary unit around the motor axis), enables rotation around the motor axis of a handheld angle screwdriver. This function is particularly useful when precise rotary movements around a defined axis are required. A variety of additional equipment options for our DEMA extend the possible applications.
Product advantages
System design & flexibility
High variability for reaching the screwing positions
Performance & ergonomics
Large swivel angle of up to 360° rotation
End position continuously adjustable depending on the variant for screwing process
Process integration & operational safety
Product Features
Torque absorption from max. 100Nm to max. 500Nm
Swivel angle from min. 270° rotation with end stops to max. 360° rotation without stops
Rotary bearing needle bearing mounted
Clamping sleeve for hand screwdrivers from Dmin. Ø35 to Dmax. Ø65
