Reference measuring adapters Equipment options

Depending on the application, the reference measuring adapter offers various equipment options, which are listed in this overview. Firstly, there is the connection kit for hand screwdrivers, which represents a secure mounting base for hand screwdrivers during reference testing. There is also the connection kit for angle heads, which was specifically developed for mounting angle heads in order not to impair the reference test. In addition, the Washer is used for the secure mounting of the reference measuring adapter in order to guarantee a stable and reliable connection. For the maintenance and care of the reference measuring adapter, the Grease gun is essential, as it is used for the regular re-greasing of the adapter, thus improving the performance and longevity of the device.

Connection kits for hand screwdrivers

jh-ANr.
Designation
Suitable for screwdriving technology
Max. Output torque
Compatible with Reference measuring adapters
30633
Connection kit ErgoSpin
ESA005G/S - ESA075G/S Bosch Rexroth
75 Nm
3/8"

1/2"

30634

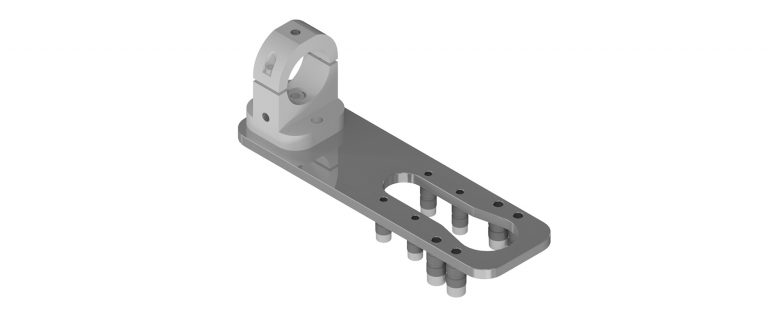

Connection kit ErgoSpin
ESA100S - ESA150S Bosch Rexroth
150 Nm
3/8"

1/2"

Connection kits for angle heads

Designation
Max. Output torque
Compatible with manufacturer
Compatible with reference measuring adapters
Connection kit for angle heads
150 Nm
400 Nm
Bosch Rexroth
JÄGER Handling
1/2"

3/4"

Washer for mounting reference measuring adapters

jh-ANr.
Designation
Compatible with reference measuring adapters
30324
Washer 3/8" reference measurement
3/8"
30323
Washer 1/2" reference measurement
1/2"
37929
Washer 3/4" reference measurement
3/4"

Grease guns

jh-ANr.
Designation
Description
98463
Grease gun 80g for RA Molykote BR2 plus
Grease gun for regreasing the reference measuring adapter
