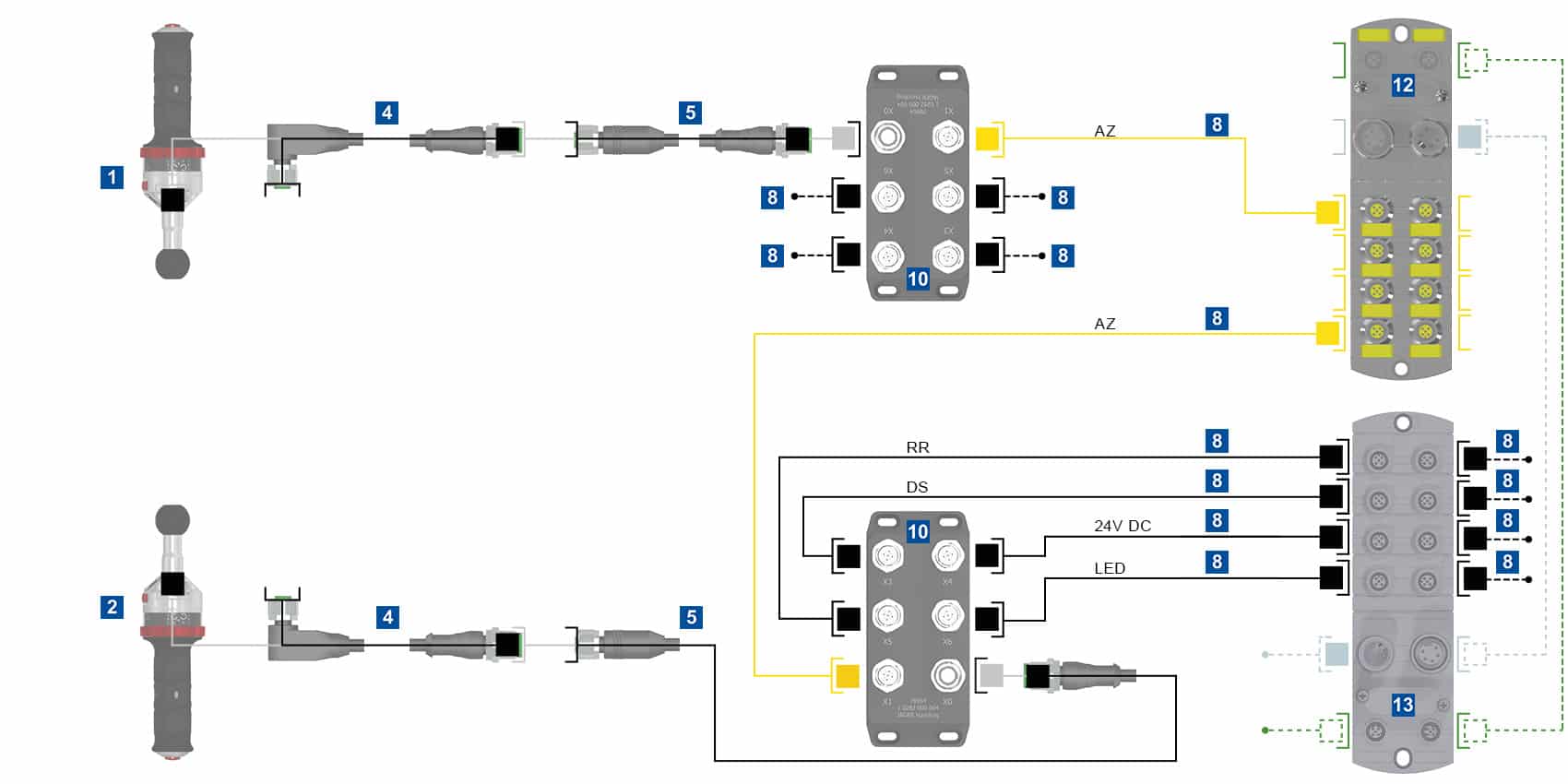

Mating: EHAZRR and EHAZRR
Configurator: Electrical accessories
Note: For moving cables, we recommend plugging the connecting cables before and after each change of direction. The total cable length of 70 m should not be exceeded.
| Image | Pos. | Name | Zur Auswahl hinzufügen |
|---|
Configurator: Mechanical accessories
Minimum distance: Dimension "C
Please note that for safe two-hand operation, a minimum distance of C = 550mm must be maintained between the buttons. If this dimension is not met, a protector is required per handle to prevent simultaneous activation of both buttons with the hand and elbow of the same arm. How is dimension C calculated?
Mechanical accessories for C < 550mm
Example 1
| Image | Pos. | Name | Zur Auswahl hinzufügen |
|---|
