The e-handle is an electrically controlled operating handle. Thanks to its ergonomic handle design, it enables comfortable and fatigue-free operation of handling devices, machines and tools. It has up to four assignable buttons, a thumb-operated rotary switch and an all-round LED status display. The cable connection can be plugged directly into the handle housing, and the e-handle can be mounted at any angle ± 20° in the room thanks to its ball connection. Variants with presence monitoring are marked with [C] in the table, variants with two-hand safety actuation with [Z].

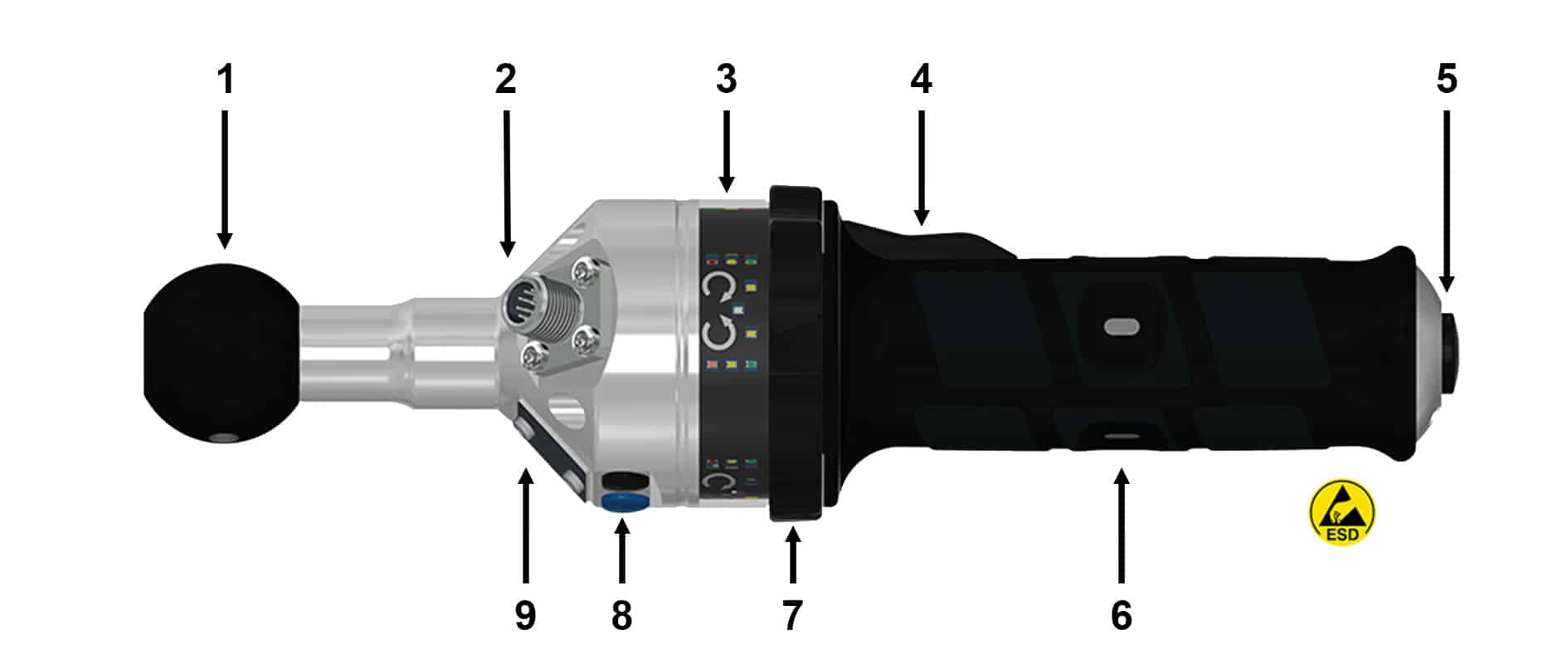

Image of a d-handle operating handle.

1. ball connection

2. 12-pin M12 plug

3. LED status display

4. lever switch

5. axial button

6. attendance check

7. rotary switch

8. radial button

9. identification plate

Accessories

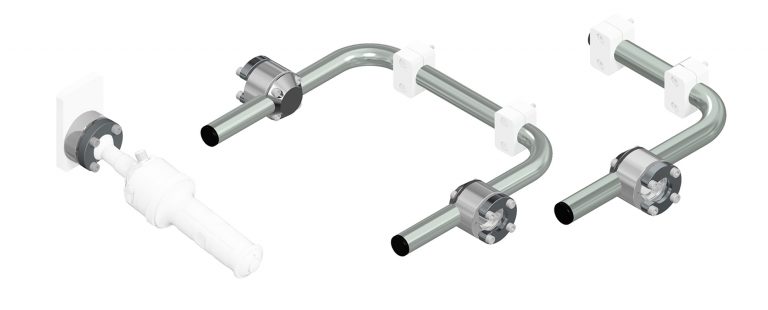

Connections
Remote-controlled disconnections
Electrical Components
Protectors

VARIANT OVERVIEW: e-handle

jh-ANr.
jh-Code
e-handle
Lever switch
Axial button
Presence
control
Radial button
Radial button
IO-Link
Special feature for Bosch Rexroth*
12-pin
4-pin
71862
EHHRR
EH
H
R
R
71864
EHHCRR
EH
H
C
R
R
71865
EHARR
EH
A
R
R
71870
EHHARR
EH
H
A
R
R
71868
EHHACRR
EH
H
A
C
R
R
71875
EHHRRSD*
EH
H
R
R
SD*
71878
EHARRSD*
EH
A
R
R
SD*
130662
EHHARRI
EH
H
A
R
R
I
130663
EHHACRRI
EH
H
A
C
R
R
I

Note: Equipment features are marked in red

*SpecialSD variant: The SD variant of the e-handle series is mandatory if the operating handle is connected directly to the Bosch Rexroth screwdriver control via the 24V I/O interface. With this variant, the start signal of the lever or axial button and the rotary switch for left/right rotation are connected in series. If the start release and direction of rotation preselection of the e-handle is connected to a higher-level PLC and then routed to the Bosch Rexroth controller, no SD variant is required.

VARIANT OVERVIEW: e-handle FOR SAFE TWO-HAND OPERATION

jh-ANr.
jh-Code
e-handle
Lever switch
Safe lever switch
Axial button
Safe axial button
Presence
control
Radial button
Radial button
IO-Link
12-pin
68182
EHHZRR
EH
H
Z
R
R
68183
EHAZRR
EH
A
Z
R
R
68184
EHHZAR
EH
H
Z
A
R
130664
EHHZRRI
EH
H
Z
R
R
I
130665
EHAZRRI
EH
A
Z
R
R
I
130666
EHHZCRRI
EH
H
Z
C
R
R
I

Note: Equipment features are marked in red
