Socket holder
Back
Before

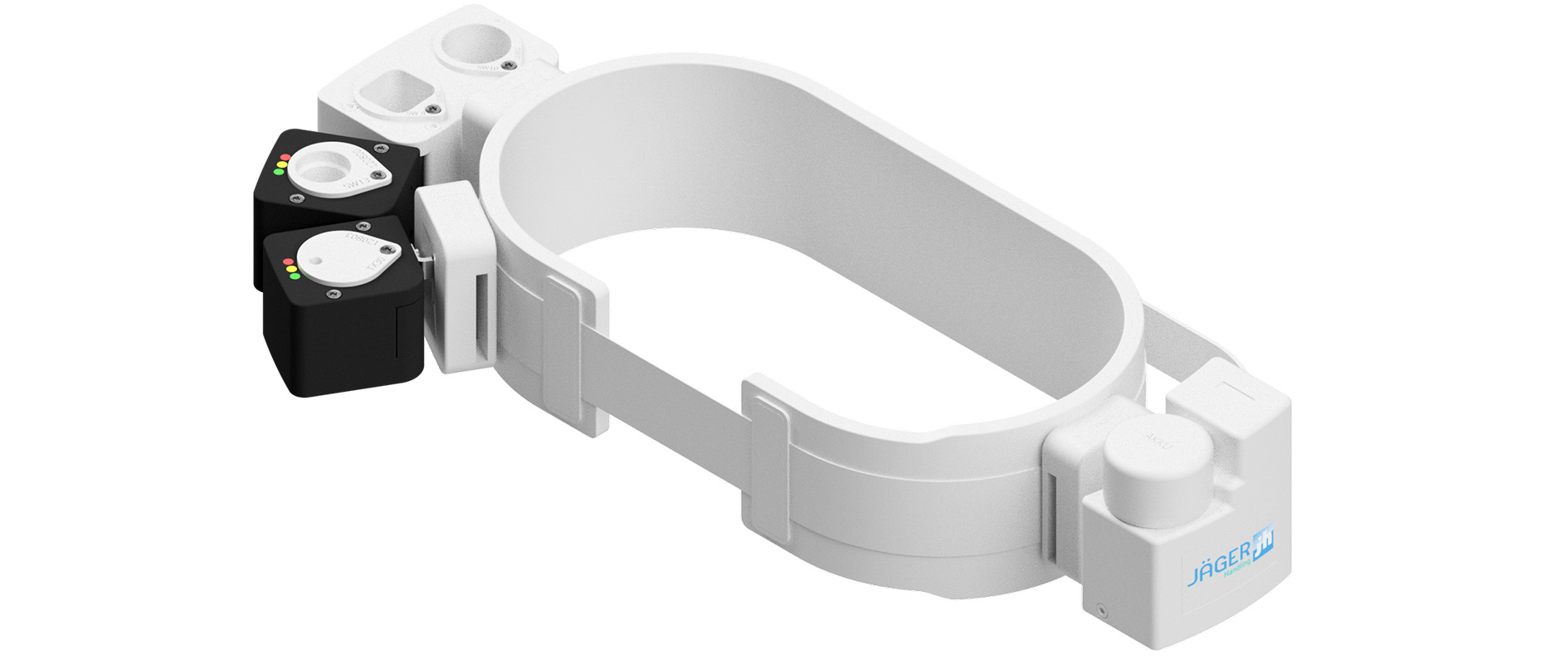

The socket-belt is a portable socket holder designed specifically for flexible use in industrial assembly. It communicates wirelessly, transmits data cyclically via WiFi, and is equipped with a 12V battery. Separate slots allow for the accommodation of multiple screwdriving tools. Each tool slot is equipped with three colored LEDs (Red, Yellow, Green) that indicate the current status or process steps.

WLAN-box

– Battery 12V 3.0Ah
– 2.4/5GHz WLAN antennas
– Protection class: IP54

Display showing:
– Battery level
– WLAN
– Data transmission

flex-belt

Ergonomic belt:
– Optional with shoulder strap

Tool-free change of:
– socket-box
– WLAN-box

socket-box duo

– Holder for sockets / bits

– 3-color LED status indicator

– Protection class: IP54

Encodings

– Individual use for each tool
– Coding of the inserts via outer diameter and drive size

Short tools:
– max. outer diameter: 34mm

Long tools:
– max. outer diameter: 30mm
– max. tool length: approx. 290mm

Additional encodings

– Encoding of same diameters

Operating modes

Free selection:
It is up to the user to decide which tool to take

Operator guidance:
The user is instructed which tool to take

Belt change

– Each employee has a separate flex-belt

– Belts individually adjustable and available (hygiene)

Product advantages

System design & flexibility

Significantly increases productivity and improves operator ergonomics

Performance & ergonomics

Wireless communication, operator flexible at the workplace

Process integration & operational safety

Visual status display through colored LEDs on the tool slot (immediately indicates possible errors or malfunctions)

Expansion modules

Properties

Expansion module – required from 3-fold version

Holder for sockets / bits

3-color LED status indicator

Articulated connection ensures adaptation to the operator

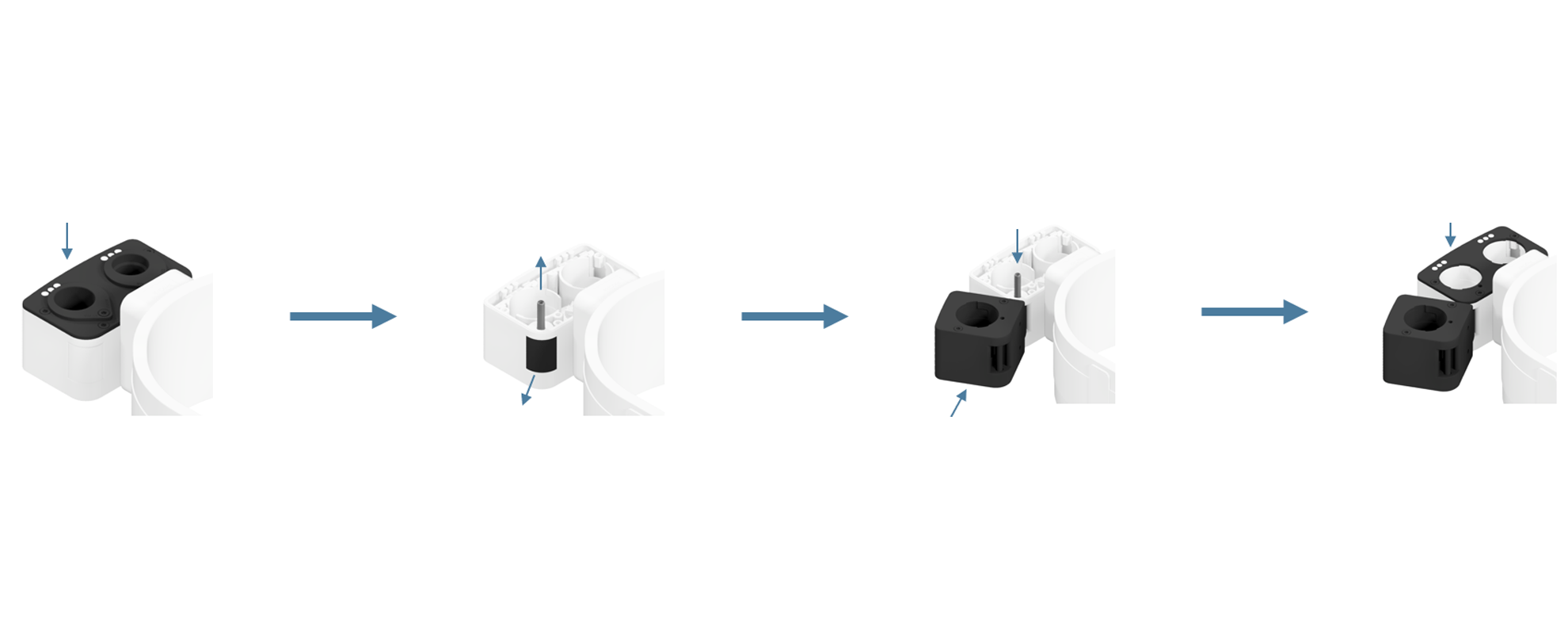

Procedure

Remove cover from socket-box duo

Pull off cylinder pin and remove cover cap

Insert socket-box mono and set cylinder pin

Attach cover

Variant overview

jh-ANr.
Designation
Description
137380
socket-belt 2-way
socket-belt for two screwdriving tools (2-way) with WLAN function for power supply with a GBA 12V battery (Bosch)
138797
socket-belt 3-way
socket-belt for three screwdriving tools (3-way) with WLAN function for power supply with a GBA 12V battery (Bosch)
138798
socket-belt 4-way
socket-belt for four screwdriving tools (4-way) with WLAN function for power supply with a GBA 12V battery (Bosch)

Equipment options

jh-ANr.
Designation
Description
110167
Battery
Battery GBA 12V 3.0Ah (Bosch) for electrical supply of the socket-belt
138948
Charger
Charger GAL 12V-40 Professional (Bosch) for charging the battery GBA 12V 3.0Ah (Bosch)
114370
Tool belt socket-belt 2-way
Tool belt for the socket-belt 2-way, for ergonomic and individual adaptation to the respective operator
111033
Tool belt socket-belt 3-way, 4-way
Tool belt for the socket-belt 3-way and 4-way, for ergonomic and individual adaptation to the respective operator
108534
socket-tray
socket-tray for holding tools in the individual slots of the socket-belt, which are individually created for the tool
