Configurators for horizontal tightening applications
Back
Before

Various configurations of the carbo-arm system are available for horizontal tightening applications. All variants include the following standard scope, which can be selected in the configurator:

carbo-arm with or without position measuring systems

Spring balancer

Home position query

Tool holder

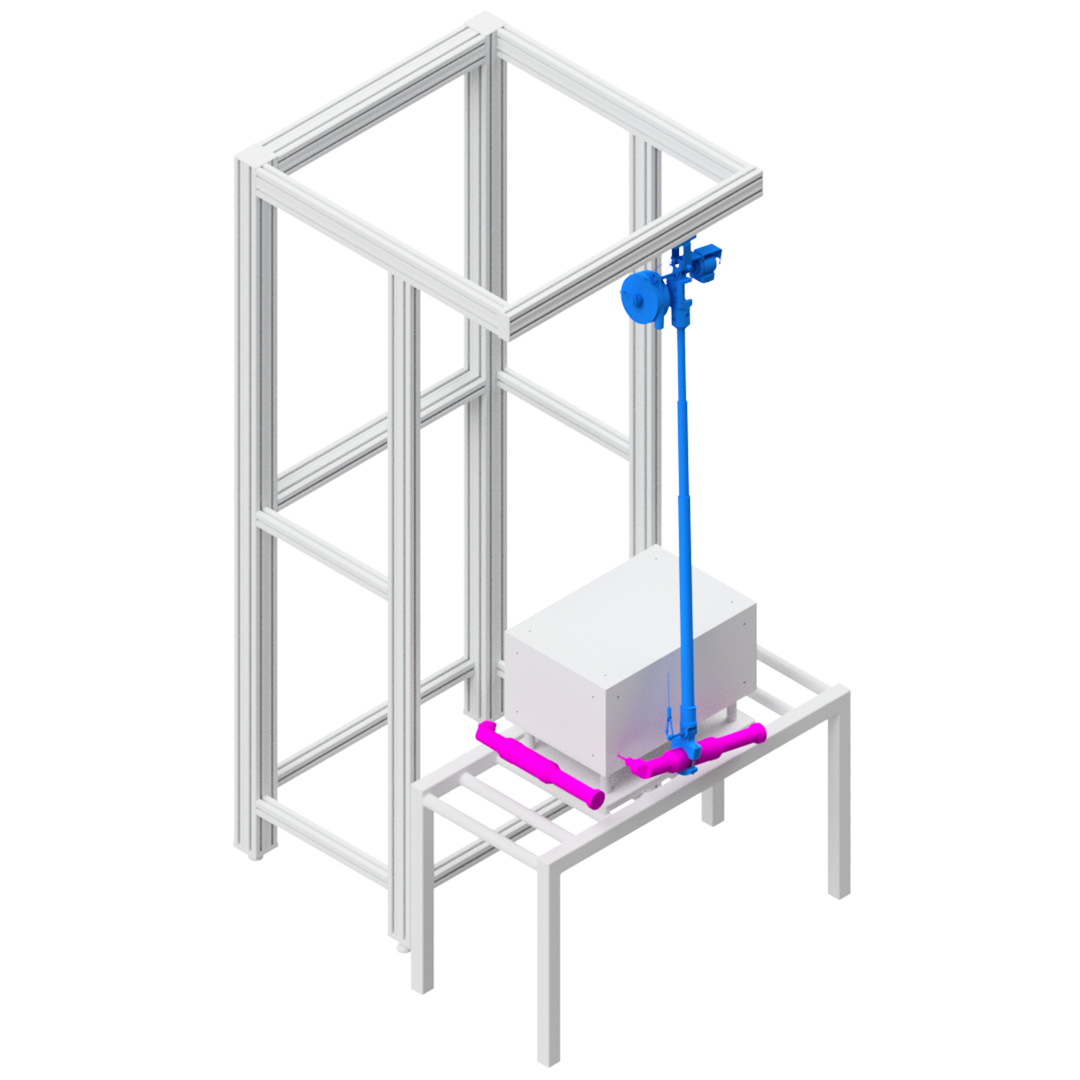

Kca01: Two tightening planes

  • Swivel around 2 axes and rotatable around the carbo-arm axis
  • Clamping piece for mounting nutrunners with angle output drive
To the configurator

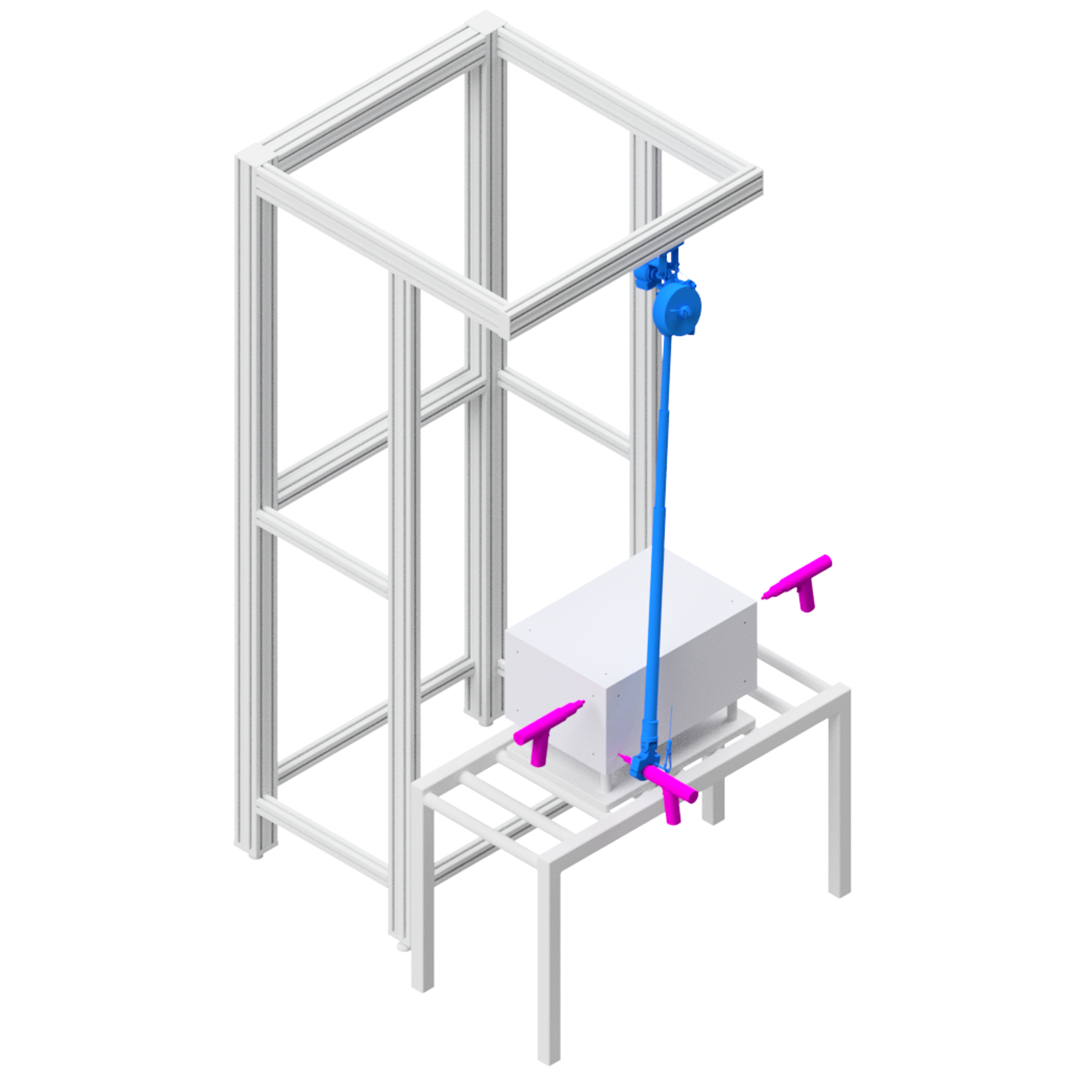

Kca02: Three tightening planes

  • Swivel around 2 axes and rotatable around the carbo-arm axis
  • Clamping piece for mounting pistole nutrunners
To the configurator

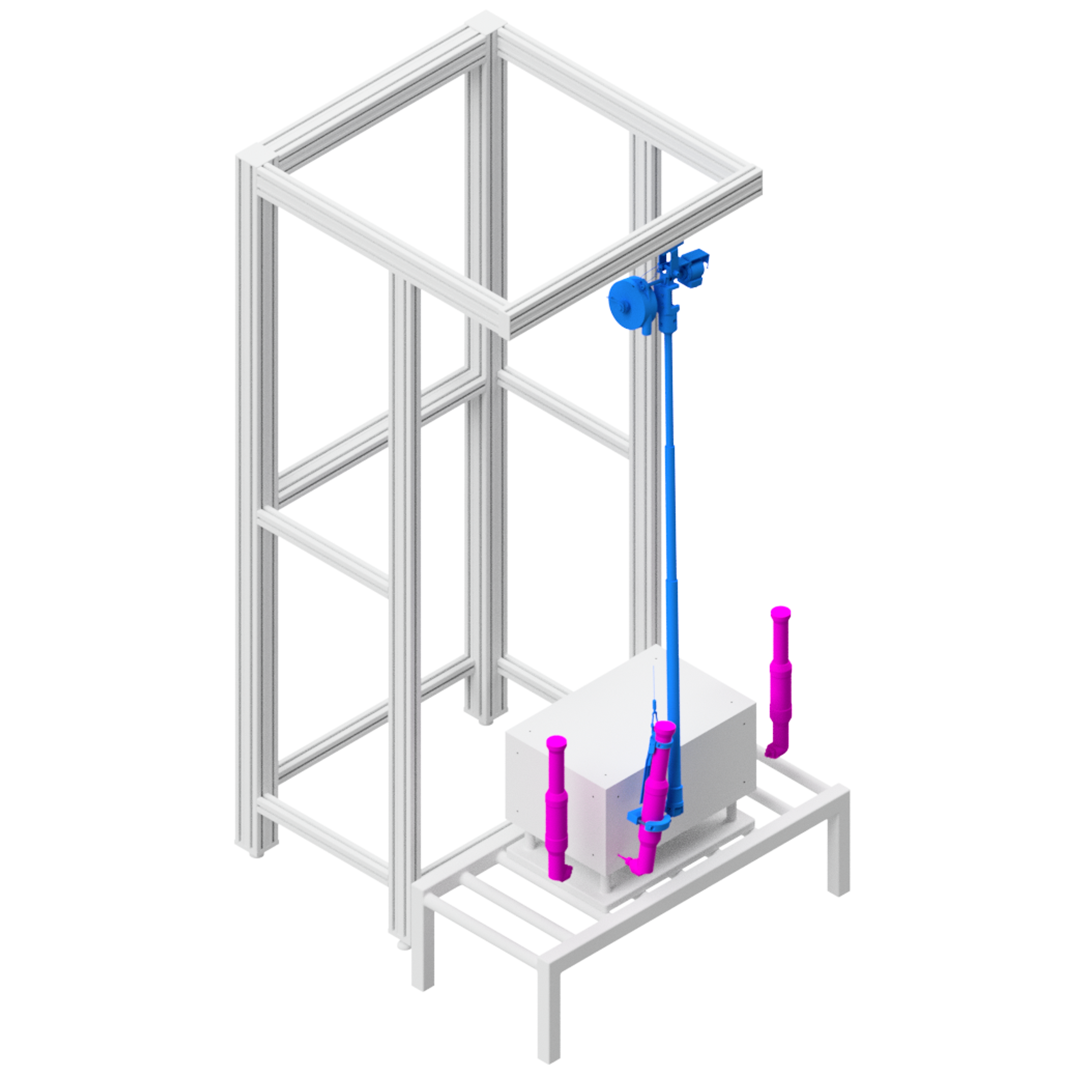

Kca03: Three tightening planes

  • Swivel around 2 axes and rotatable around the carbo-arm axis
  • Clamping piece for mounting nutrunners with angle output drive (upright nutrunner)
To the configurator
