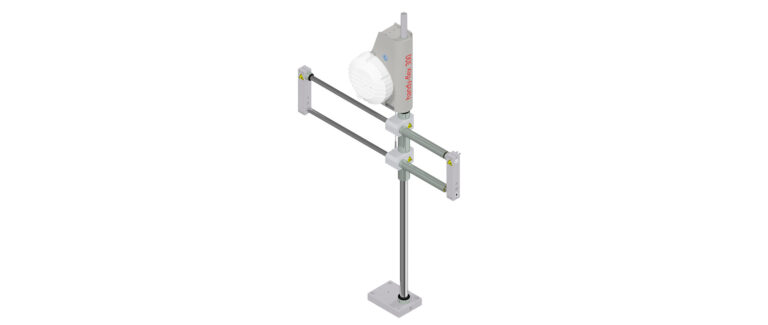

handy-flex 300
Back
Before

VARIANT OVERVIEW handy-flex 300

Design
Version
Vertical stroke*
Horizontal stroke*
Payload max.*
handy-flex 300
Single column design
500 mm - 600 mm
400 mm - 600 mm
17.0 kg
handy-flex 300d
Double column design
450 mm - 550 mm
400 mm - 600 mm
16.5 kg
handy-flex 300c
Single column design horizontal axis compact
500 mm - 600 mm
300 mm - 500 mm
15.1 kg
handy-flex 300dc
Double column design horizontal axis compact
450 mm - 550 mm
300 mm - 500 mm
15.1 kg
handy-flex 300o
Single column design suspended from the ceiling
500 mm
400 mm - 600 mm
17.0 kg

*With increasing strokes, less torque and payload can be absorbed.
