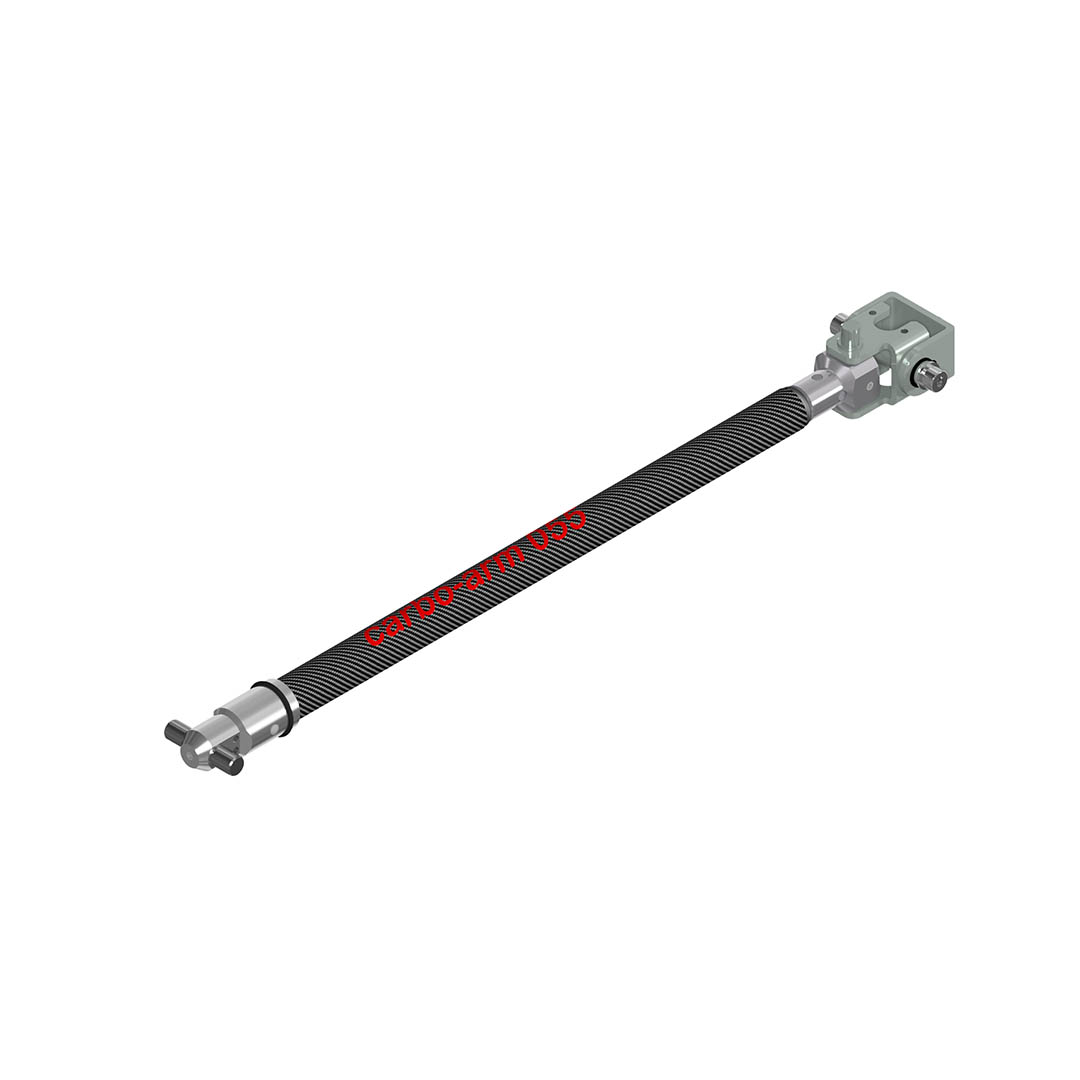

carbo-arm 055
Function The carbo-arm 055 is used for mounting nutrunners and enables the support of reaction torques within a tightening plane. Features carbo-arm variants s, m, and l; stroke ranges from 657 mm to 1,457 mm; support for torques up to 55 Nm. A laser distance measuring system for position detection in the extraction direction is available as a configuration option. The position measuring system can be expanded with a rotary encoder. Application For assembly workstations with nutrunners.
Additional information
| Weight | N/A |
|---|
Accessories
Rail system | Trolleys | Energy guiding
Clamping bracket
Spring balancer | Spring suspension | Spring balancer suspension
Position queries | Position measuring systems | Alignment aid
