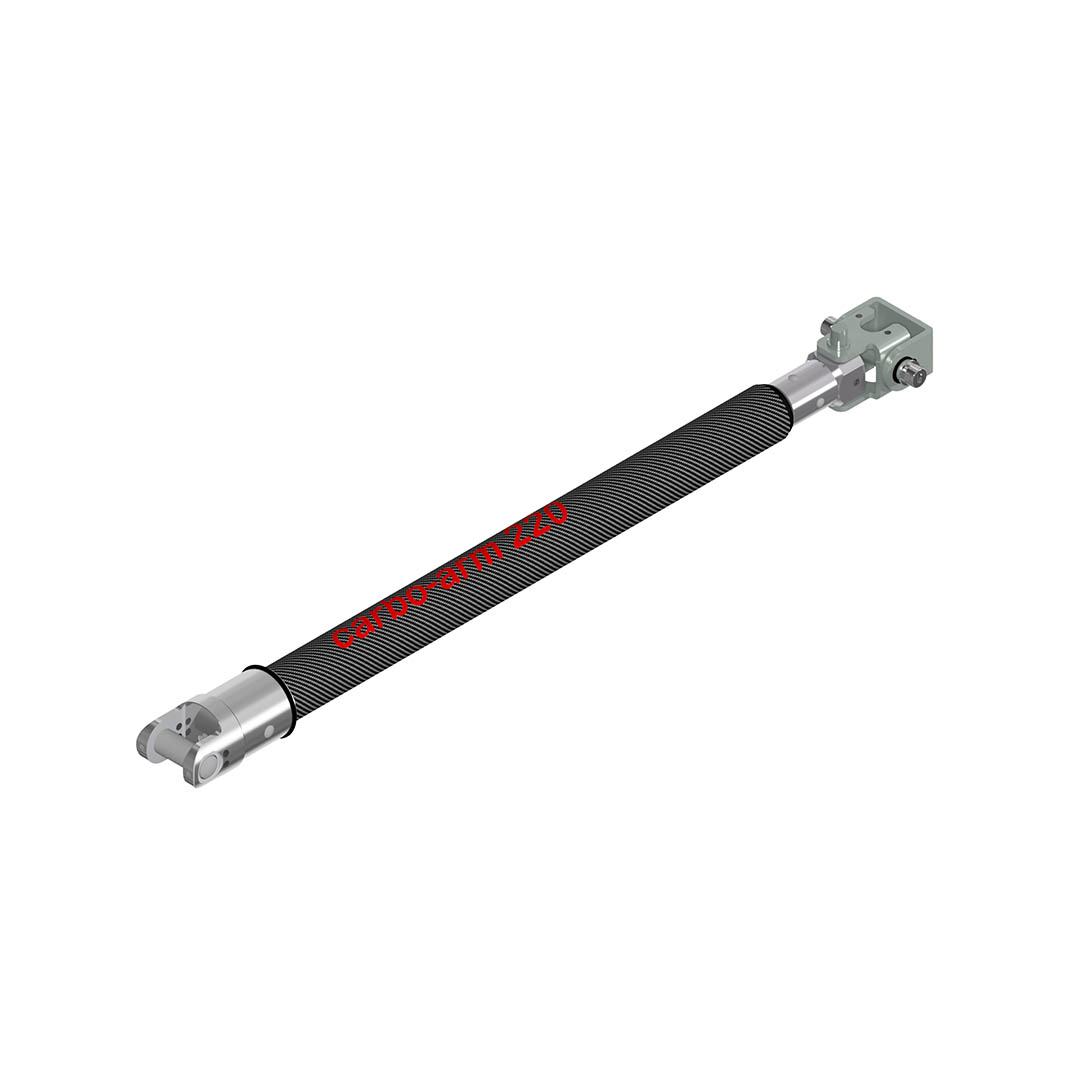

carbo-arm 220
Function
The carbo-arm 220 is used as a mounting for nutrunners and enables support of reaction rorques within a tightening plane.
Features
carbo-arm variants s, m and l
stroke ranges from 579 mm to 1789 mm
mounting for torques up to 220 Nm
A laser distance measuring system for position detextion in extraction direction is available as a configuration option
The position measuring systems can be expanded with a rotary encoder.
Use
For assembly workstations with nutrunners
Additional information
| Weight | N/A |
|---|
Accessories
Rail system | Trolleys | Energy guiding
Clamping bracket
Spring balancer | Spring suspension | Spring balancer suspension
Position queries | Position measuring systems | Alignment aid
