Front axle central screw / nut
Task
Tightening the central screw/nut on the front axle. The torque is to be absorbed via the locking pins of the adaptation from the axle.
Special feature: Alignment glasses with query
Torque: 750Nm
Payload: 21 kg
roller-unit

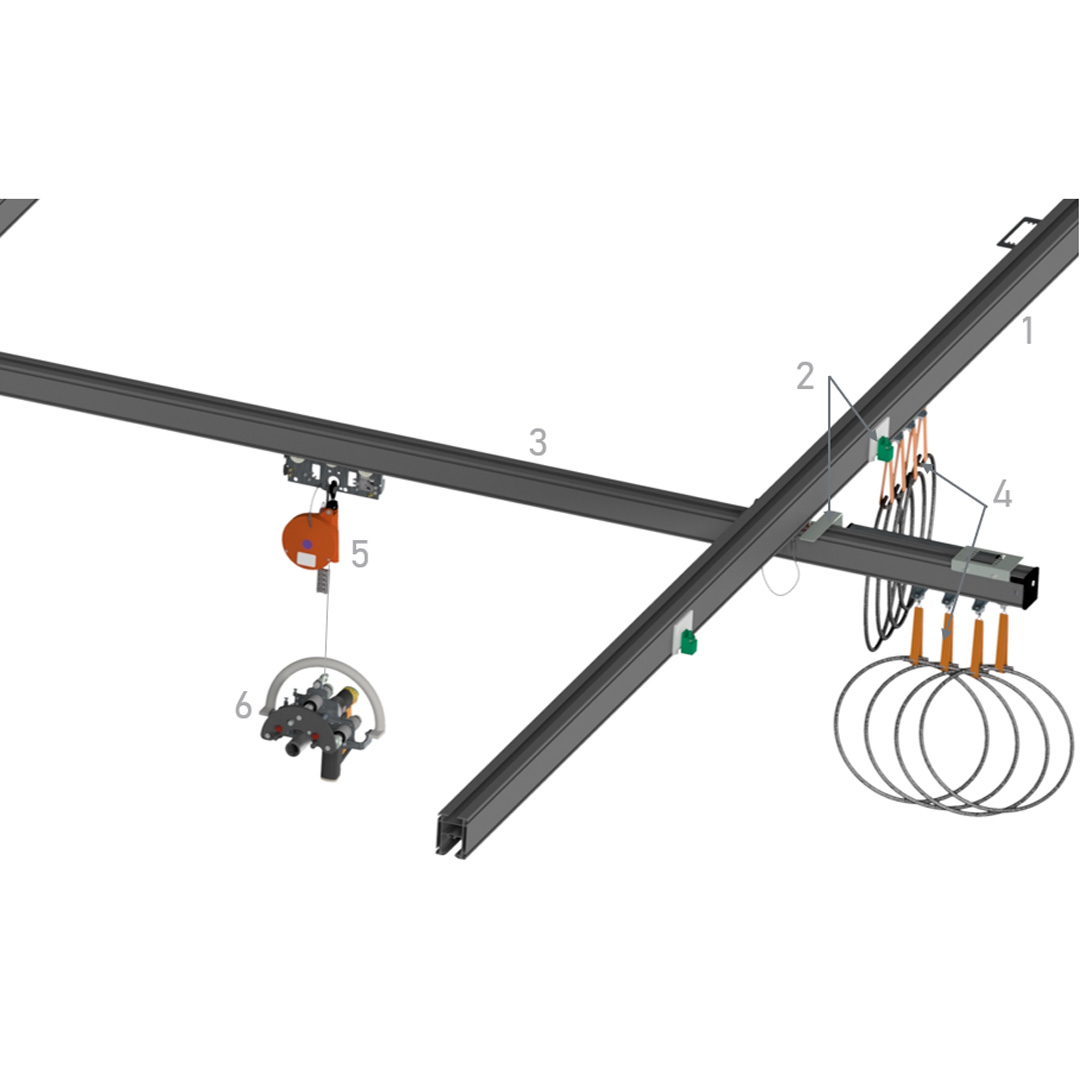

Equipment
Equipment
1
crane rail
2
Queries crane rail
3
carne bridge
4
Energy supply
5
Weight compensation
6
Adaptation system roller-unit

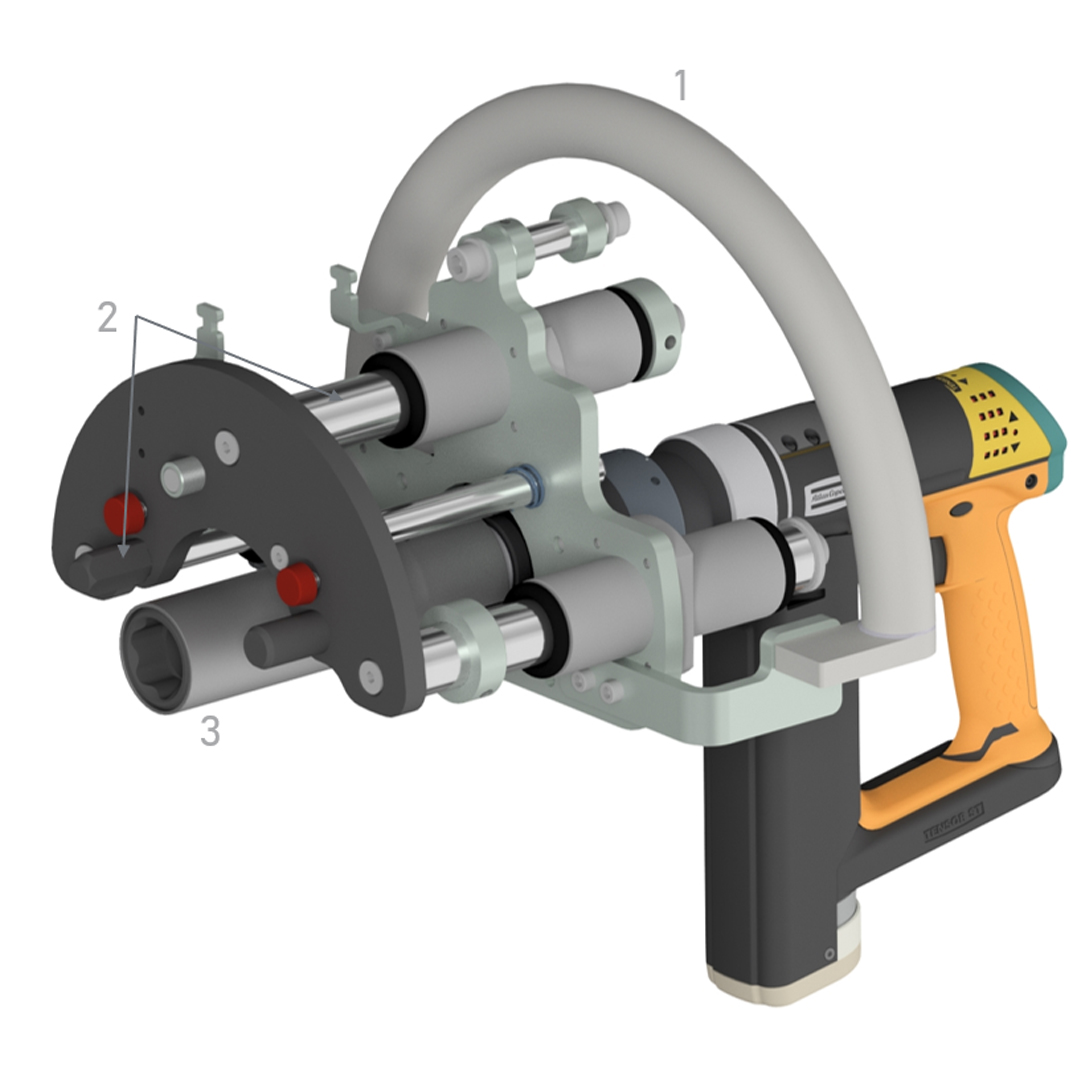

Adaptation system
Equipment
Equipment
1
Handle bar
2
Counter holder over-sprung
3
Free-turning protective sleeve
