Wheel carrier cover plate on wheel carrier
Task
The cover plates must be screwed onto the respective wheel carriers in pairs. A position monitoring system ensures that all screws have been properly installed.
Special feature: Displacement measurement system
Torque: 56Nm
Payload: 22 kg
handy-flex
Equipment
Equipment
1
Stand
2
handy-flex 400

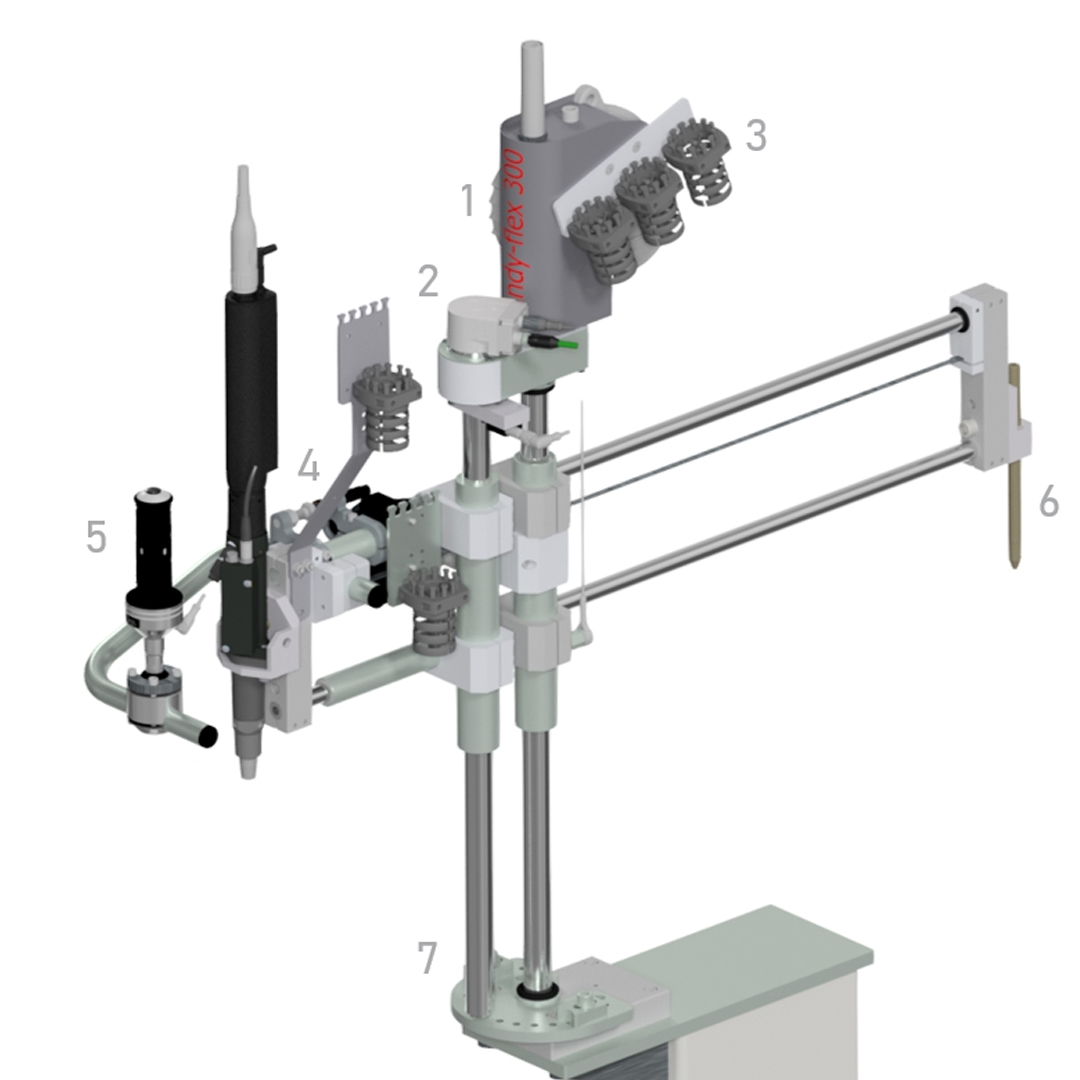

handy-flex
Equipment
Equipment
1
Weight compensation
2
Rotary encoder
3
Energy supply
4
Spring-loaded retraction
5
Adaptation system handy-flex
6
Pinning
7
Swivel limitation

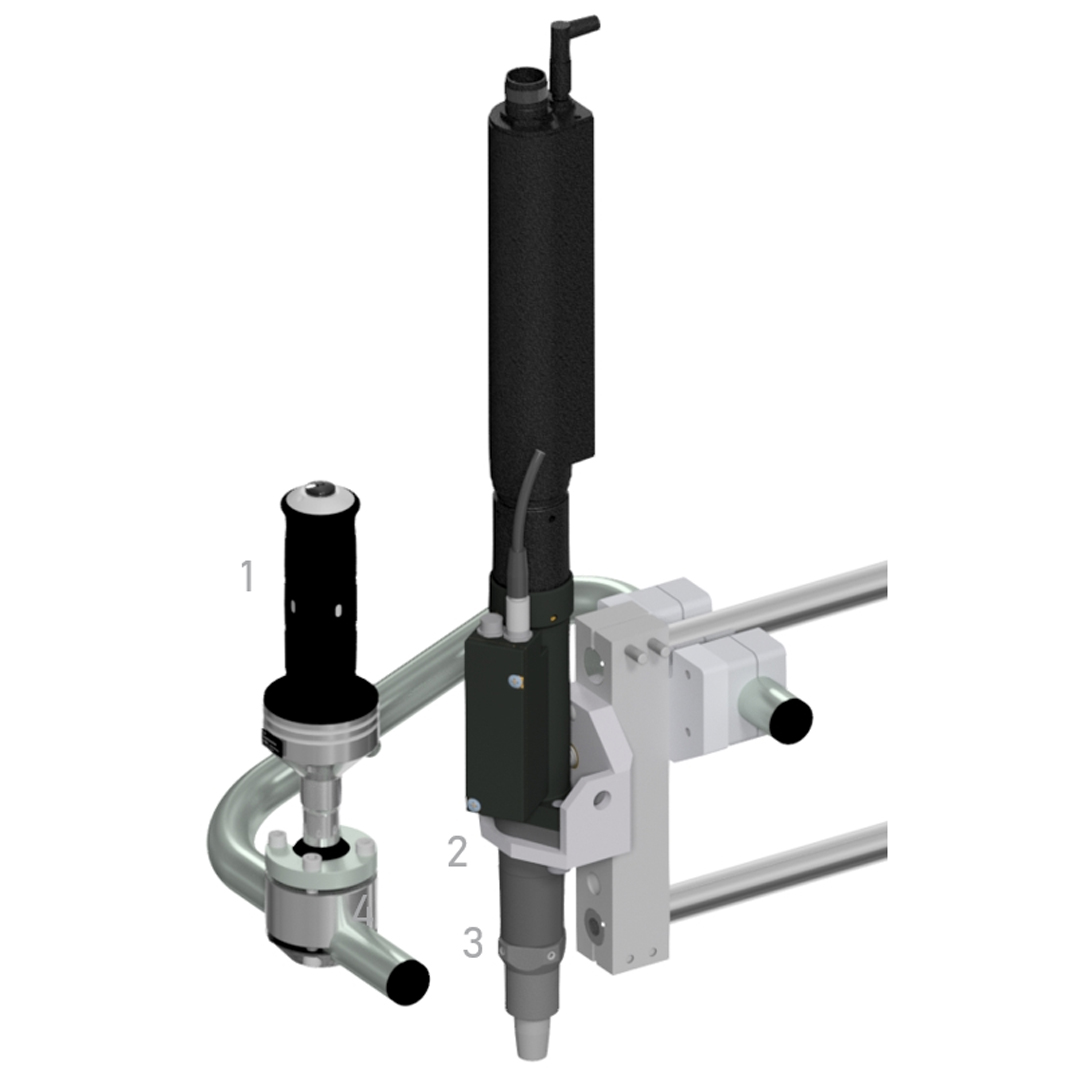

Adaptation system
Equipment
Equipment
1
Operating handle
2
Adapter angle
3
Free-running sleeve
