Battery cover/hood/cap on battery
Task
Bolting various components to the battery. Special features include the large stroke, due to the clearance for engaging the component, and the accessibility of the wide variety of bolting points on the battery. Another feature is the precise querying of the tight bolting points.
Special feature: Multiple extension/telescopic extension
Torque: 13 Nm
Payload: 80 kg
handy-flex

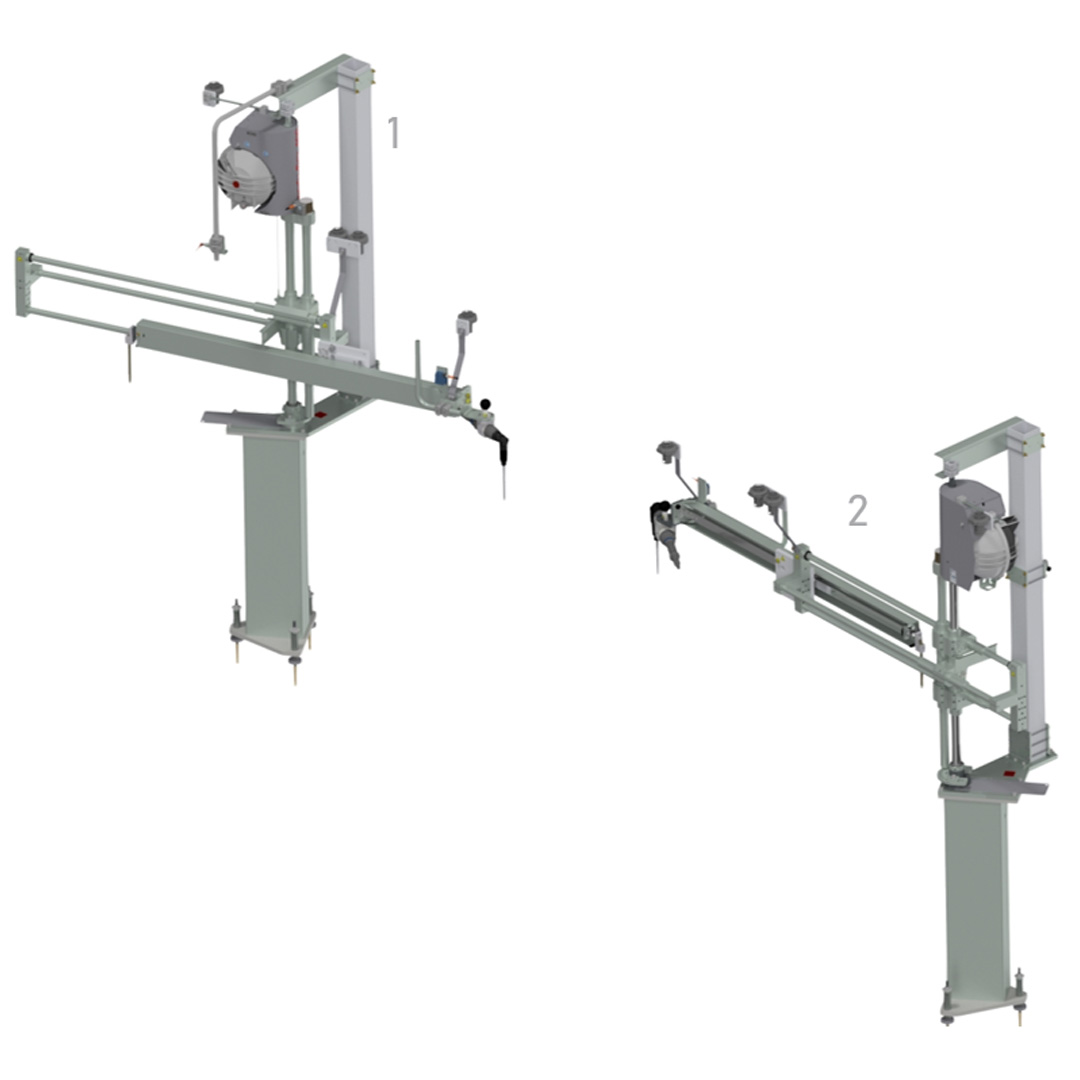

Equipment
Equipment
1
handy-flex 400ht left
2
handy-flex 400ht right
handy-flex

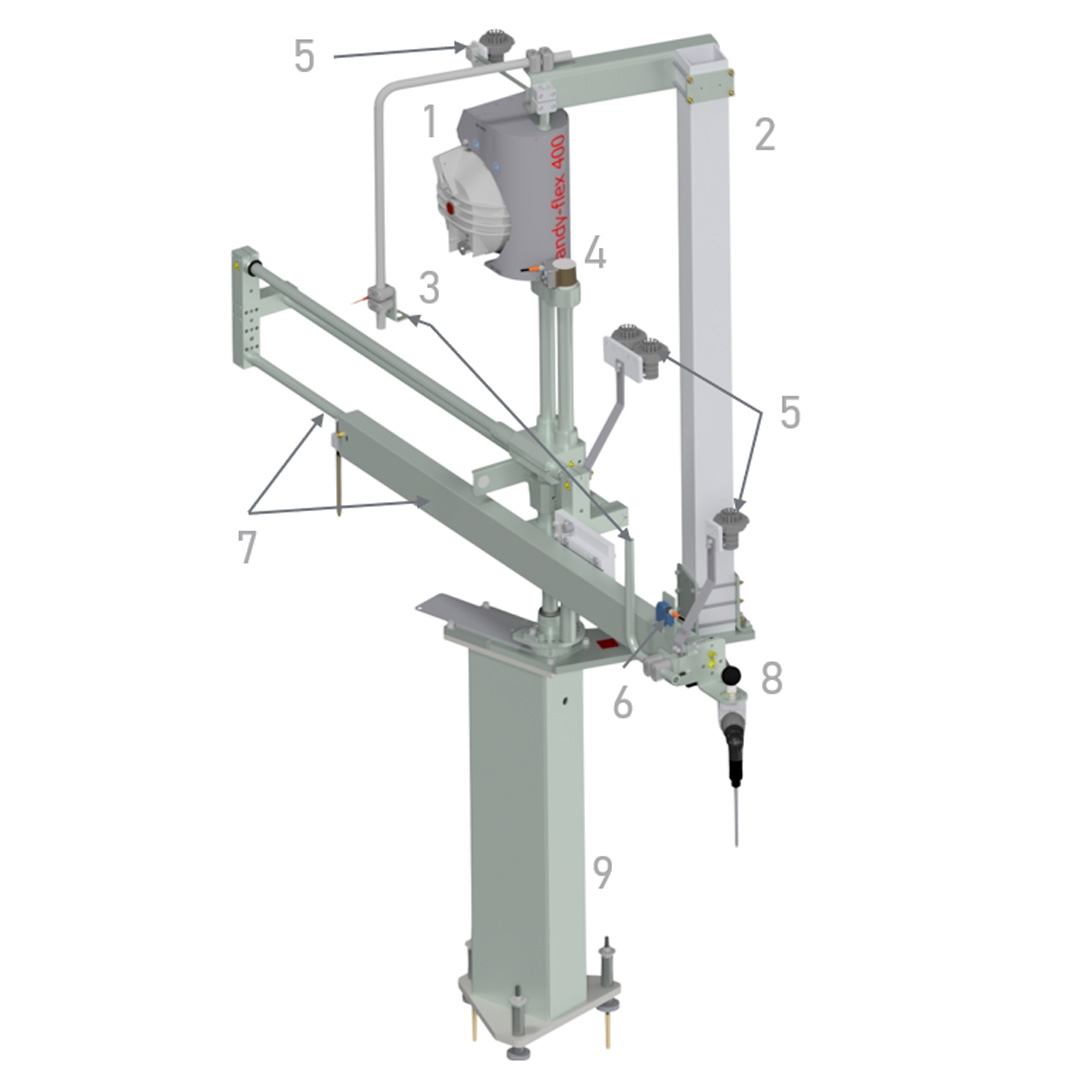

Equipment
Equipment
1
Weight compensation
2
Stiffening
3
Parking position
4
Rotary encoder
5
Energy supply
6
Horizontal displacement measurement system
7
Double telescopic
8
handy-flex adaptation system
9
Stand

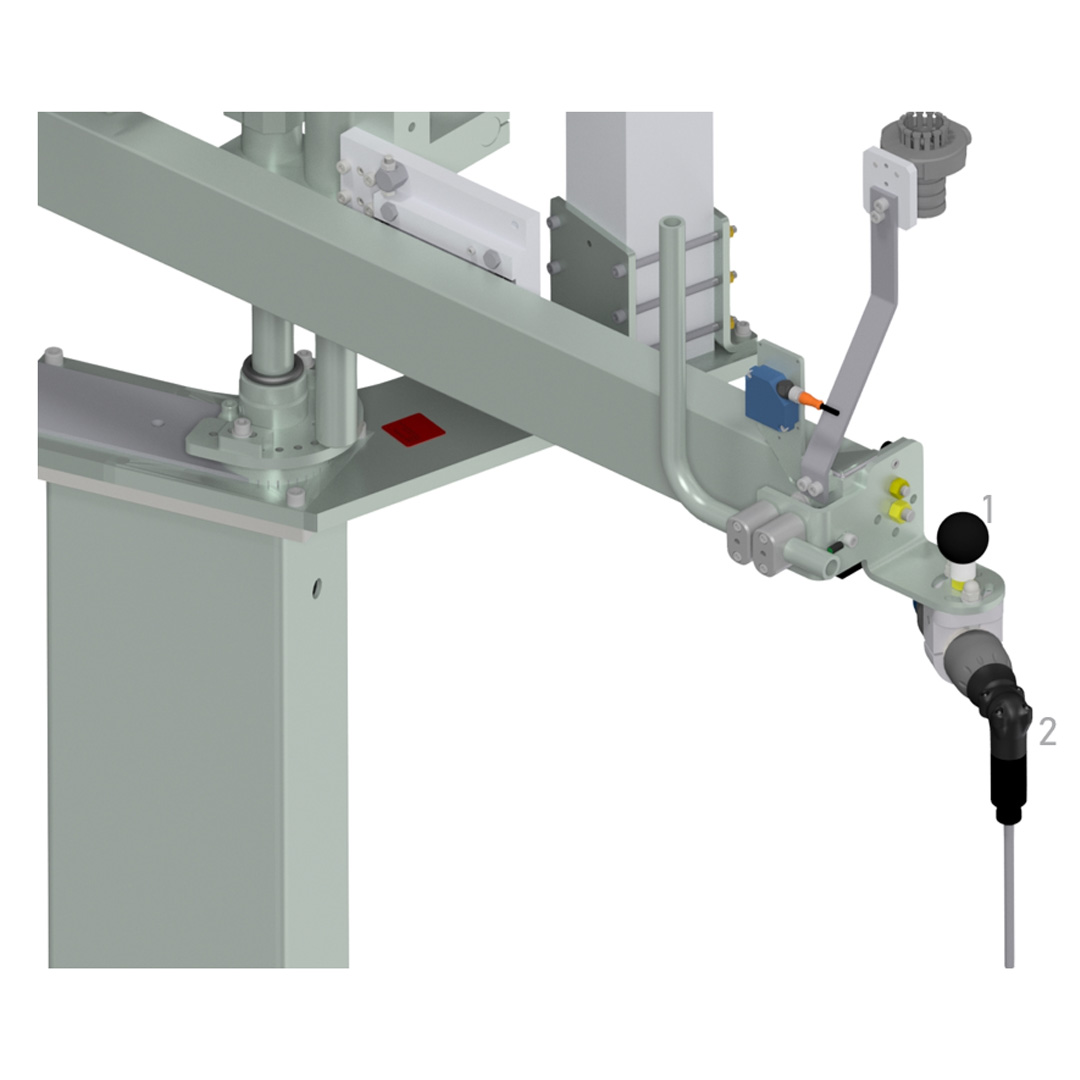

Adaptation system
Equipment
Equipment
1
Ball grip
2
Insulated straight drive
