Battery HV connector on battery
Task
Bolting various HV connectors to the battery modules. For safe handling, the components must be picked up by a gripper and, after spindle adjustment, precisely aligned with the battery in order to carry out the bolting process.
Special feature: Component gripper, screw feeder, hole pitch adjustment
Torque: 2x 17Nm
Payload: 70 kg
handy-lift
Equipment
Equipment
1
4-column frame
2
handy-lift 500

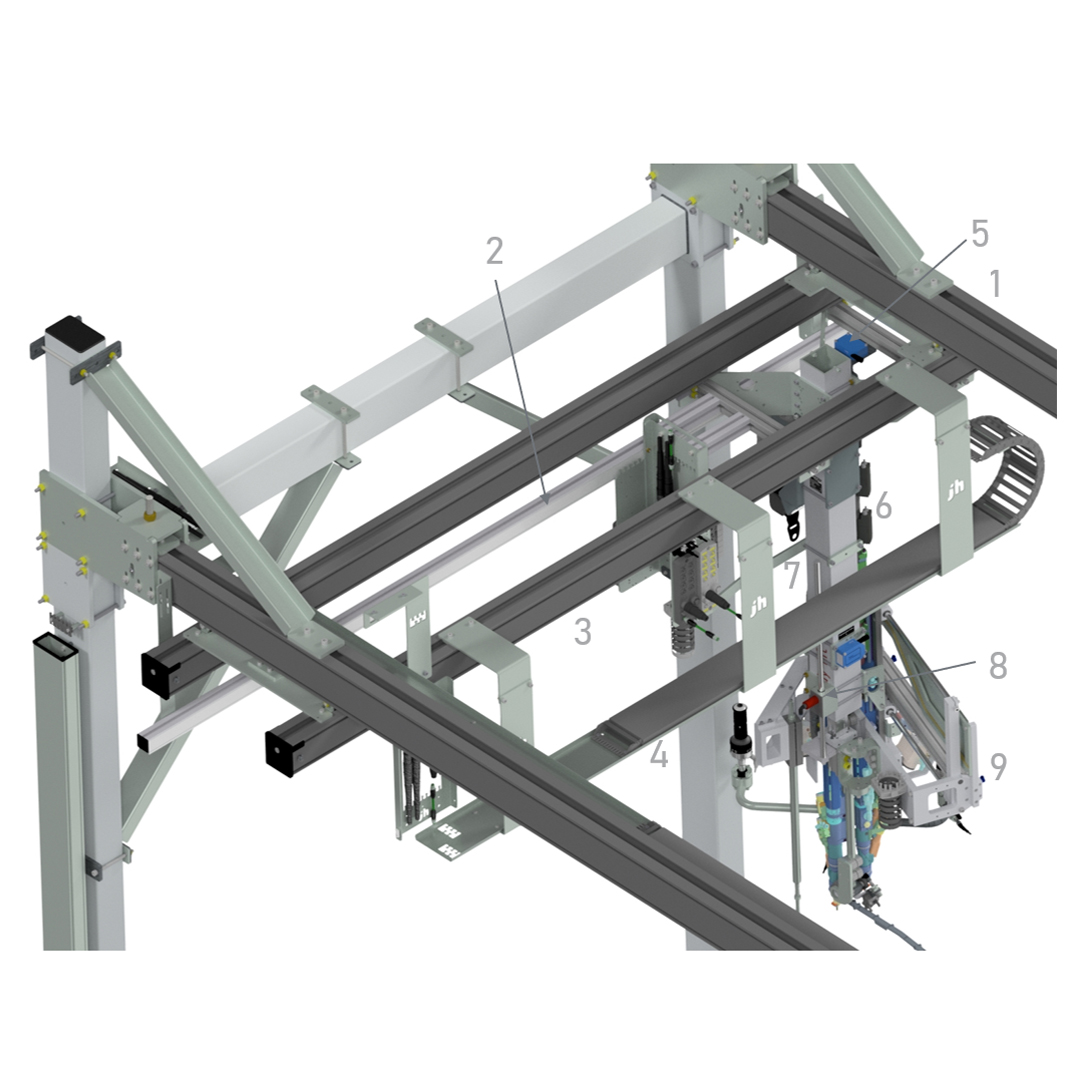

handy-lift
Equipment
Equipment
1
crane rail
2
crane rail travel measuring system
3
carne bridge
4
Energy supply
5
carne bridge travel measuring system
6
handy-lift 500 with weight compensation
7
Fall protection
8
Clamping unit Z-axis pneumatic
9
Adaptation system handy-lift
Adaptation system
Equipment
Equipment
1
Pneumatic spindle adjustment
2
Two-hand control handle
3
Component gripper
4
Screw feeder
5
Component centering
