Battery rework station
Task
Bolting of various components in a rework station. To ensure electrical safety, the screwdriving tool must be galvanically isolated. Depending on the required bolting, one of the three hand screwdrivers must be used. The adaptation system should include an interchangeable system for this purpose, which enables a quick and safe change between the different hand screwdrivers.
Special feature: 3-way revolver
Torque: 150Nm
Payload: 55 kg
handy-lift

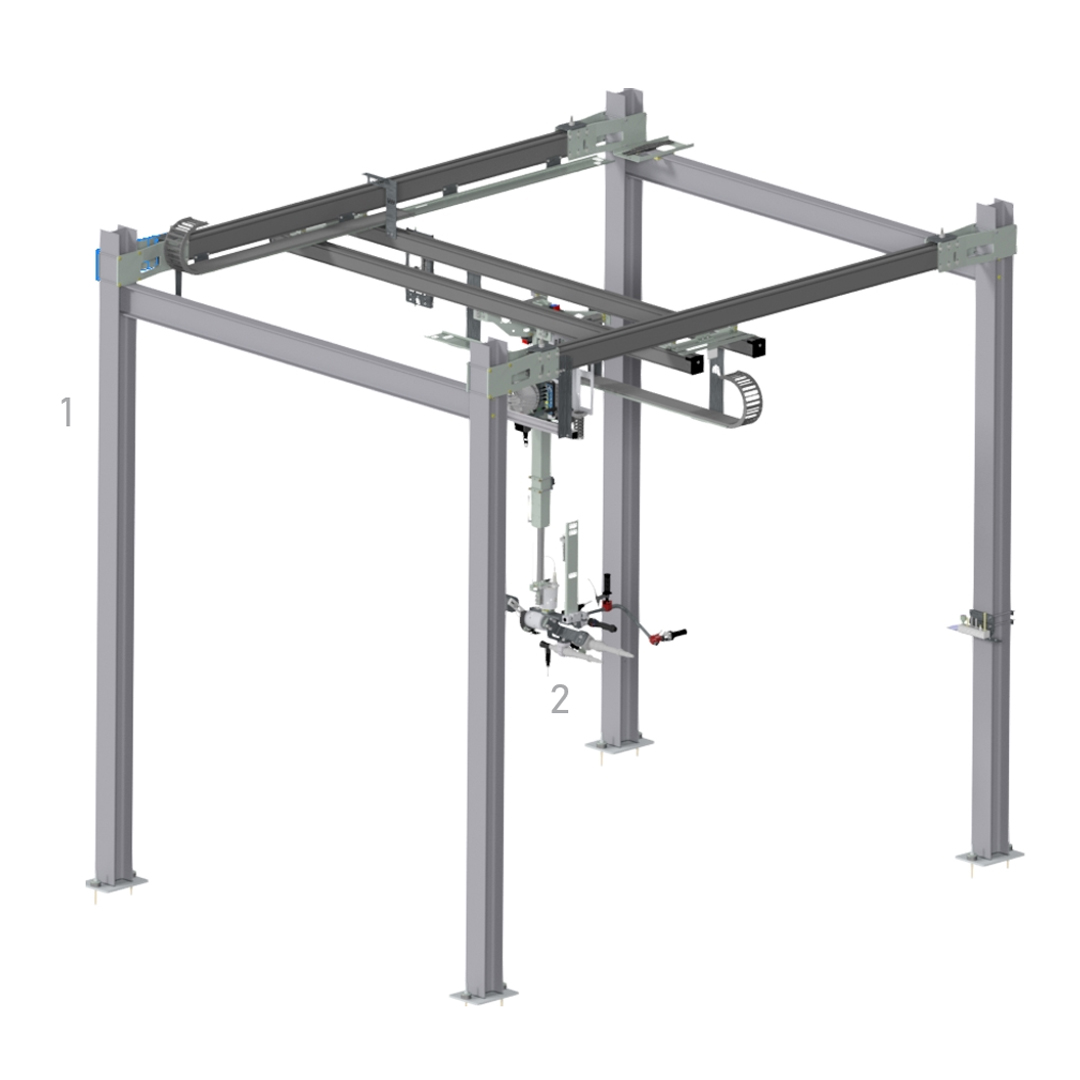

Equipment
Equipment
1
4-column frame
2
handy-lift 500
handy-lift

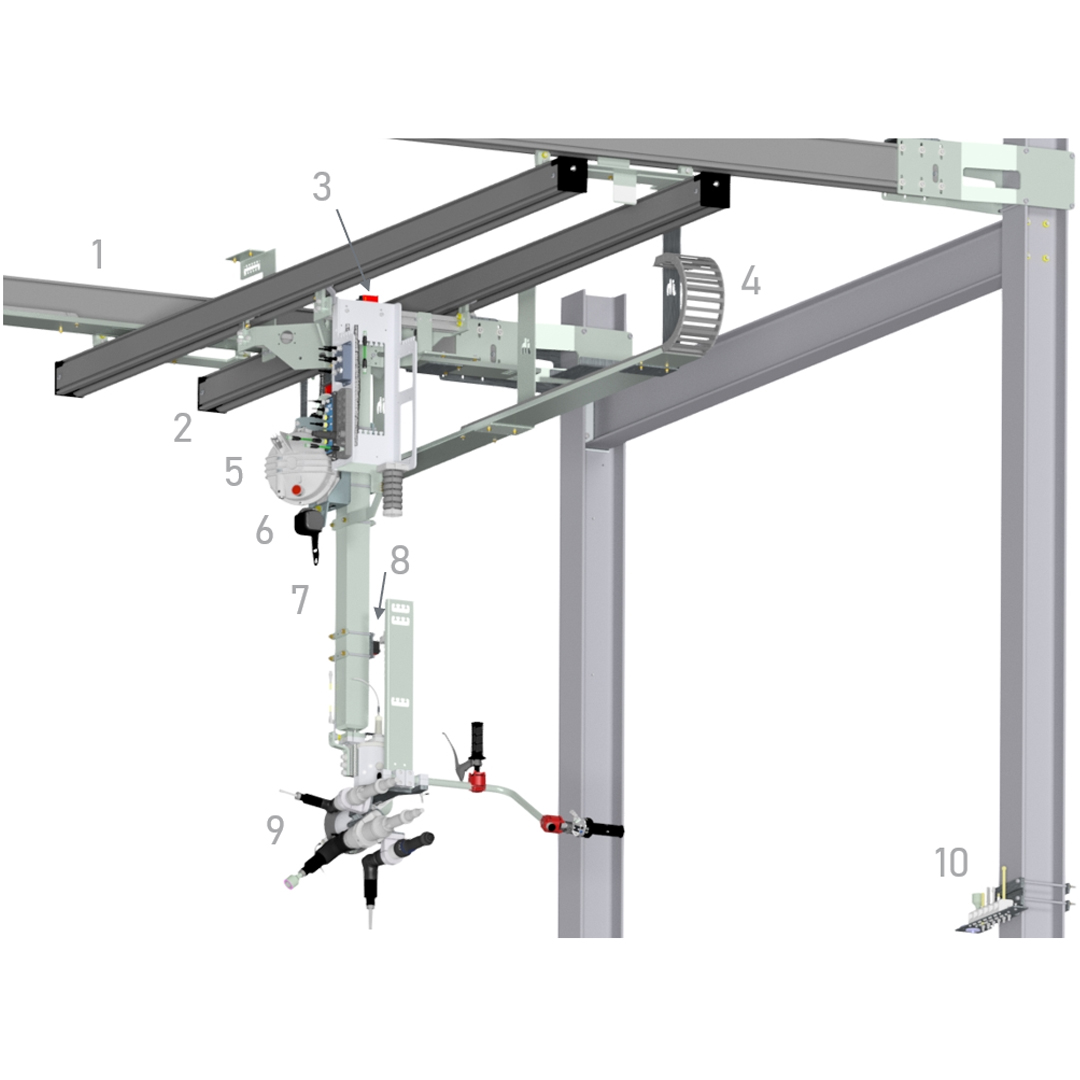

Equipment
Equipment
1
crane rail
2
carne bridge
3
Displacement measurement system carne bridge
4
Energy supply
5
Weight compensation
6
Fall protection
7
handy-lift 300
8
Position query
9
Adaptation system handy-lift
10
Socket holder
Adaptation system
Equipment
Equipment
1
Rotary unit with disconnection
2
Operating handle with Bowden cable
3
Rotary unit with disconnection
4
Clamping piece
5
Galvanically isolated output
6
Galvanically isolated quick-change chuck
