Final assembly Battery
Task

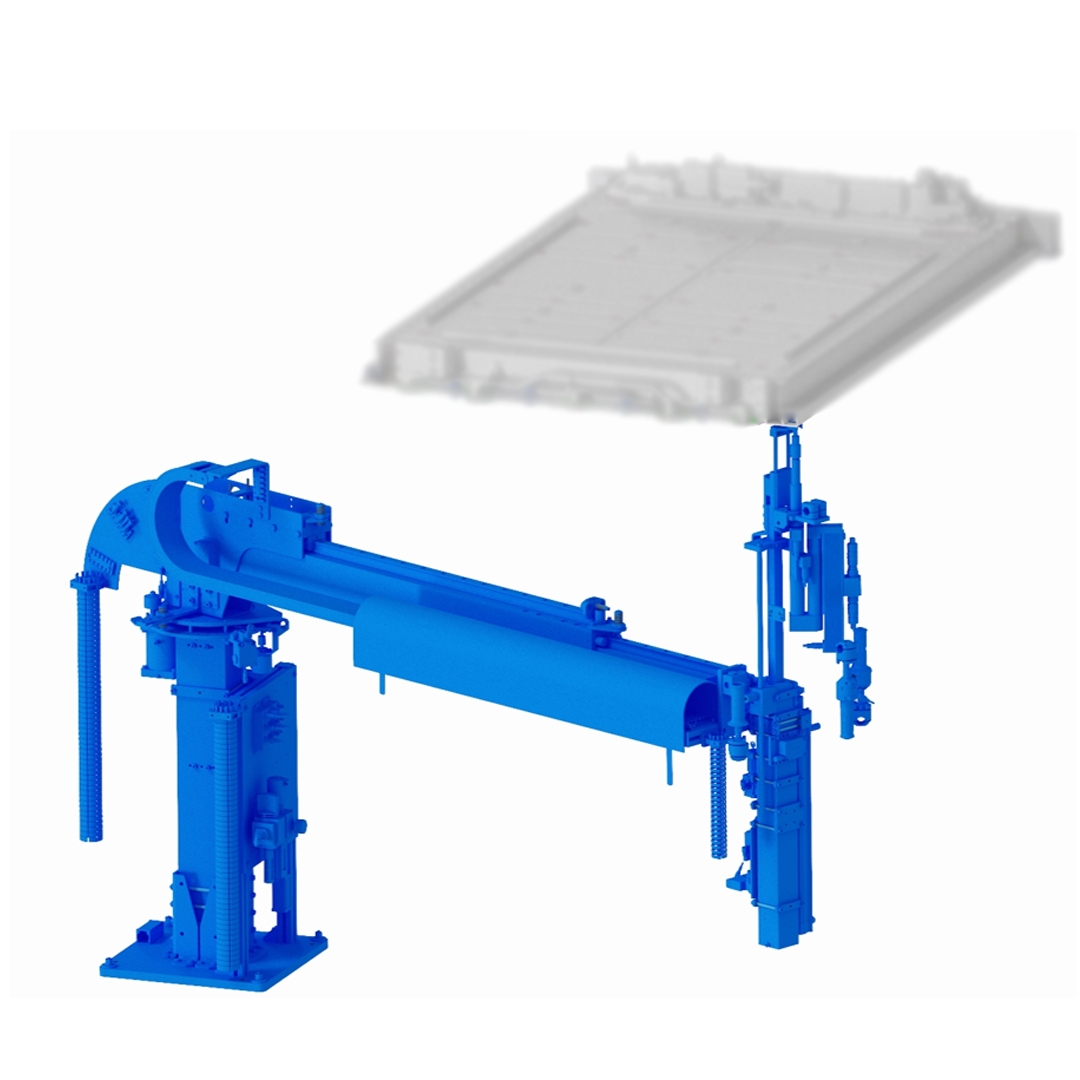

Screwing of the lower cover plate of the vehicle battery in rework. The rework is position-monitored overhead by an employee. For insertion and removal of the battery, the handling system must be in a monitored park position. The delivery stroke must be pneumatic.
Special feature: Battery rework
Torque: 35Nm
Payload: 15 kg
handy-smove
Equipment
Equipment
1
handy-smove
2
Energy supply
3
Pneumatic clamping unit
4
Rotary axis measuring system
5
Park position query C1
6
Rotary axis brake
7
Rotary axis park position locking
8
Base
9
Extension axis measuring system
10
Mechanical locking
11
handy-lift lifting axis
12
Pneumatic weight compensation
13
Z-axis measuring system
14
Pneumatic clamping unit
15
Park position query

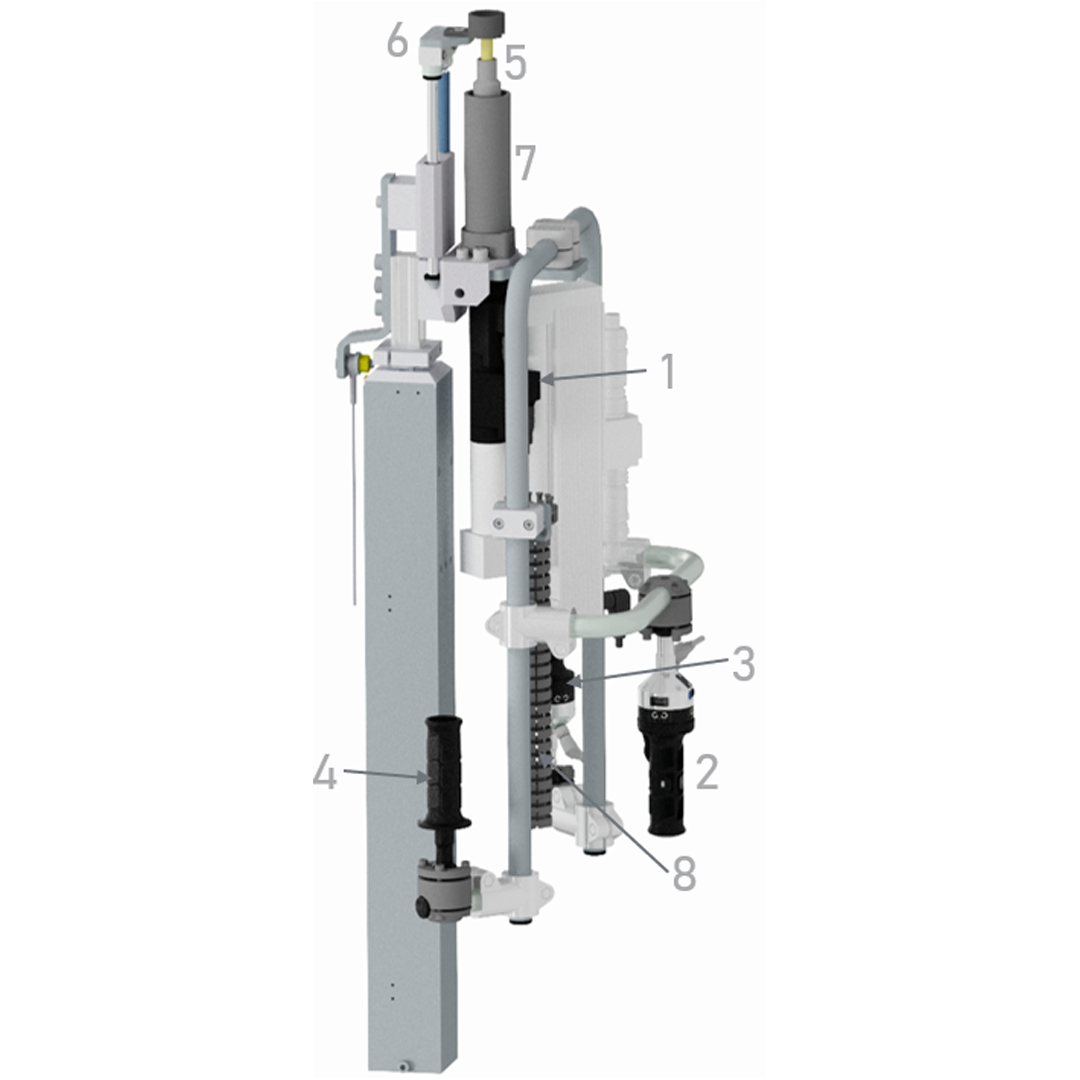

Adaptation system
Equipment
Equipment
1
Screwing spindle
2
Two-hand control handle
3
Two-hand control handle
4
Additional handle
5
Screwing tool
6
Component hold-down
7
Protective sleeve
8
Energy supply
