Final assembly of battery to car body
Task
Screwing the battery in the interior of the vehicle. Several screw connections with varying hole patterns must be made in the vehicle interior. All screw positions must be individually accessible via one of the side doors. When moving the screwing system in and out, it must be ensured that the vehicle body is not damaged. The achieved screwing result must be clearly visualized to the operator via an integrated display element.
Special feature: Electrical hole pattern adjustment
Torque: 2x 270Nm
Payload: 60 kg
Manual workstation

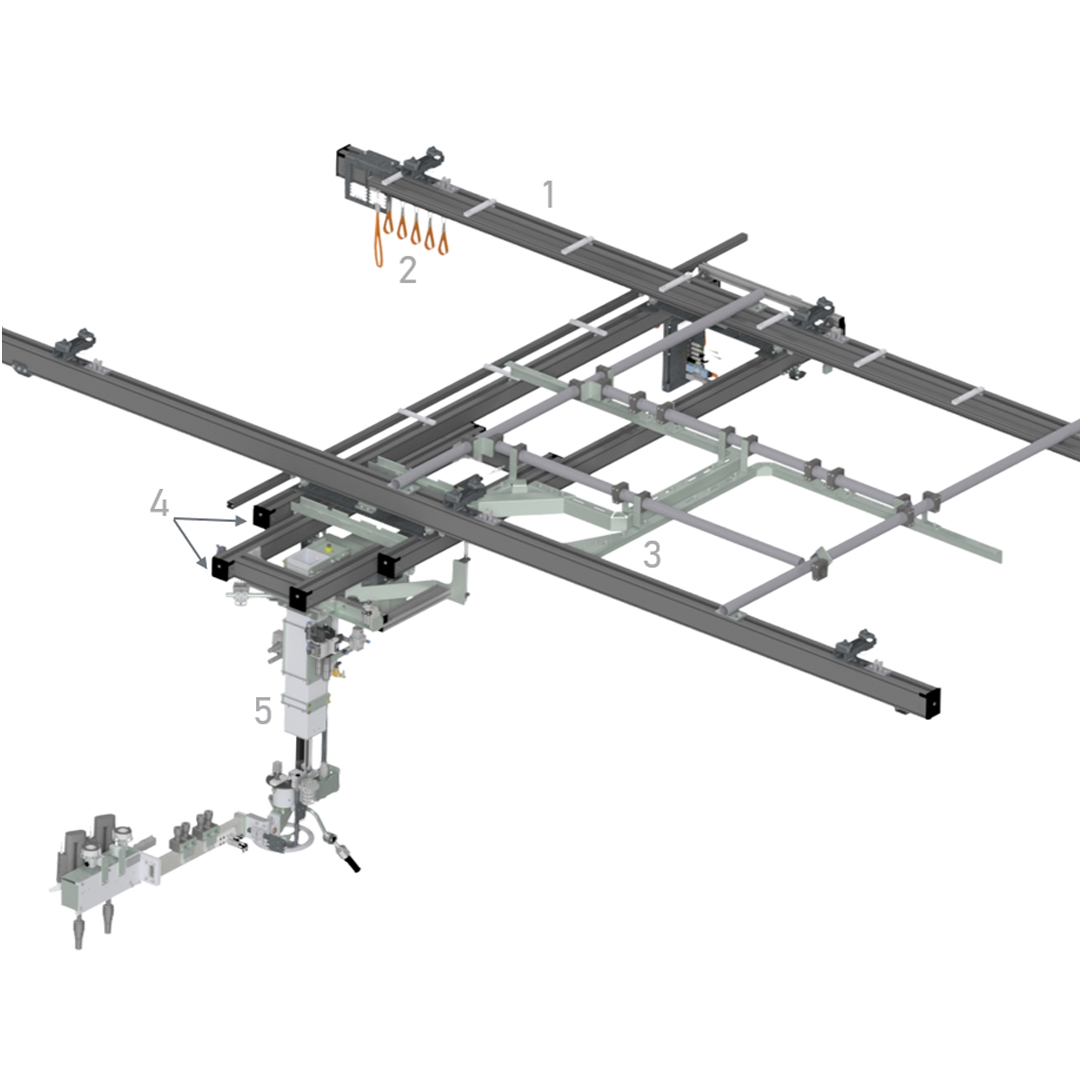

Equipment
Equipment
1
crane rail
2
Energy supply
3
Insertion backdrop
4
Telescopic carne bridge
5
handy-lift 1500
handy-lift

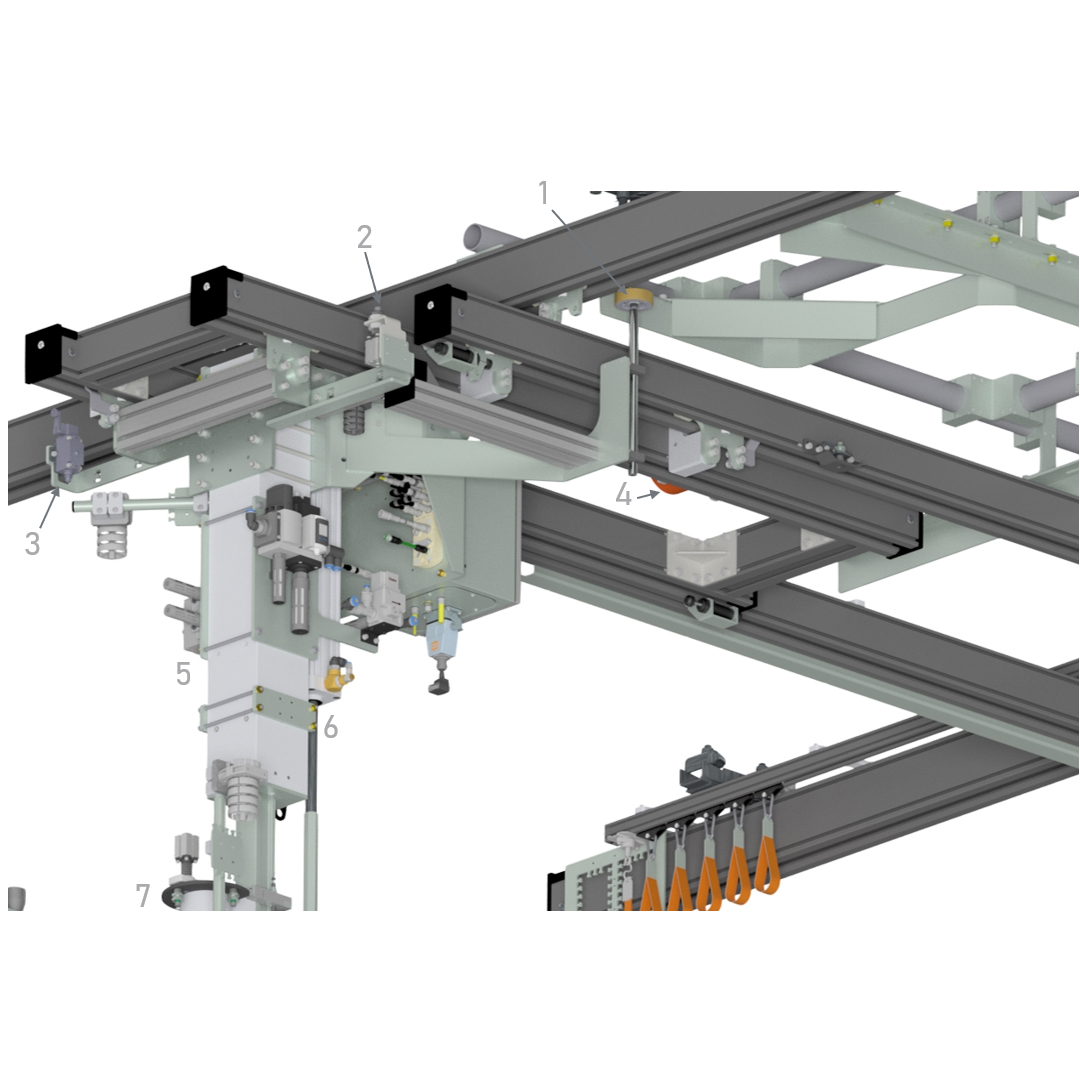

Equipment
Equipment
1
Curtain guide
2
carne bridge locking
3
Position query roller lever switch
4
Spring-loaded retraction
5
handy-lift 1500
6
Pneumatic weight compensation
7
Adaptation system handy-lift
Adaptation system

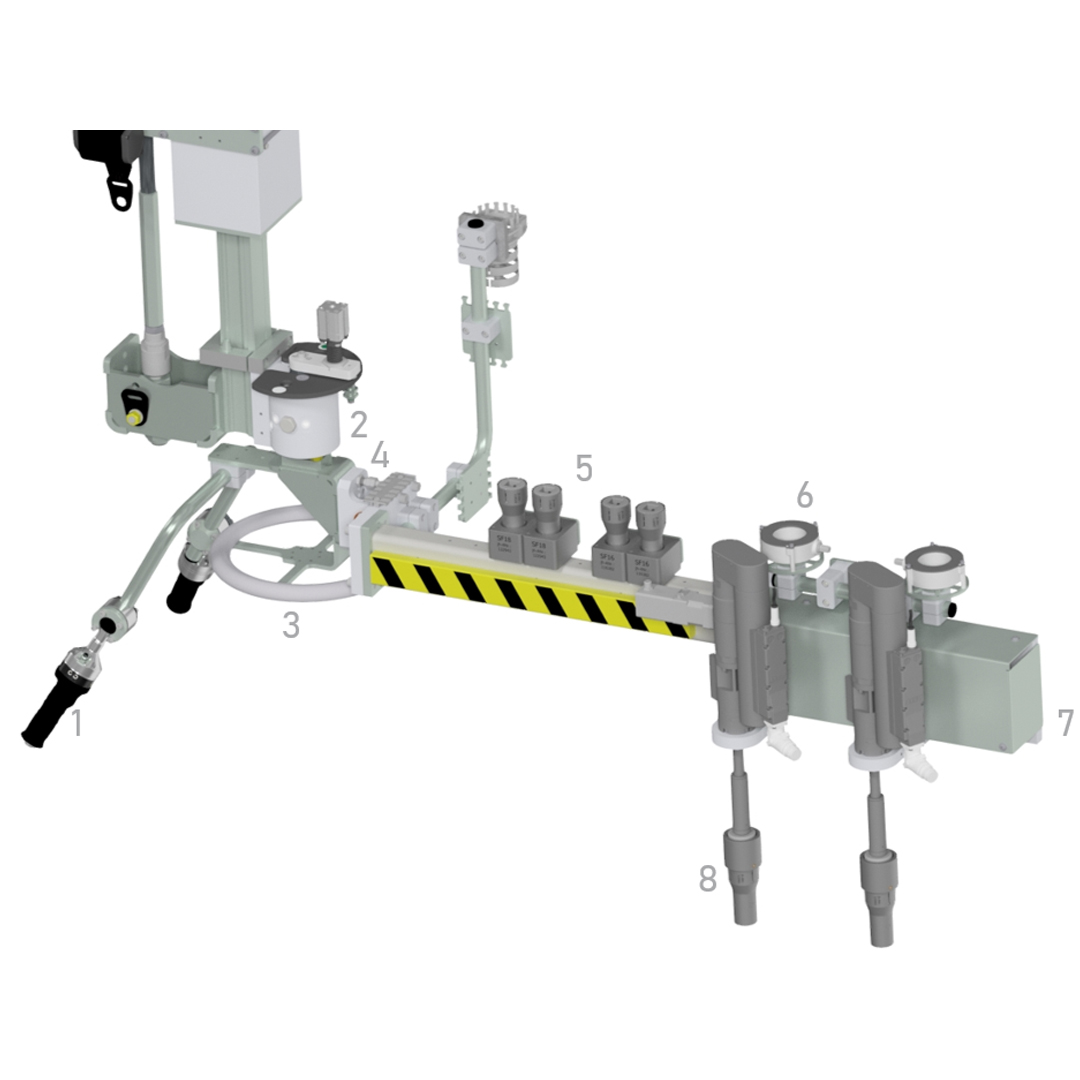

Equipment
Equipment
1
Operating handle two-hand
2
Rotating unit with staking
3
Handwheel
4
Cardan joint
5
Socket holder
6
Display element
7
Electrical spindle adjustment
8
Free-running sleeve
