Final assembly rework marriage
Task
Screwing of the rework marriage on the underbody. The screwing is done via the mech frame. Two different spindles can be adjusted independently of each other. The feed is pneumatic, and a large working area is required.
Special feature: Floor-guided
Torque: 270Nm / 142Nm
Payload: 19 kg / 12 kg
Rework station

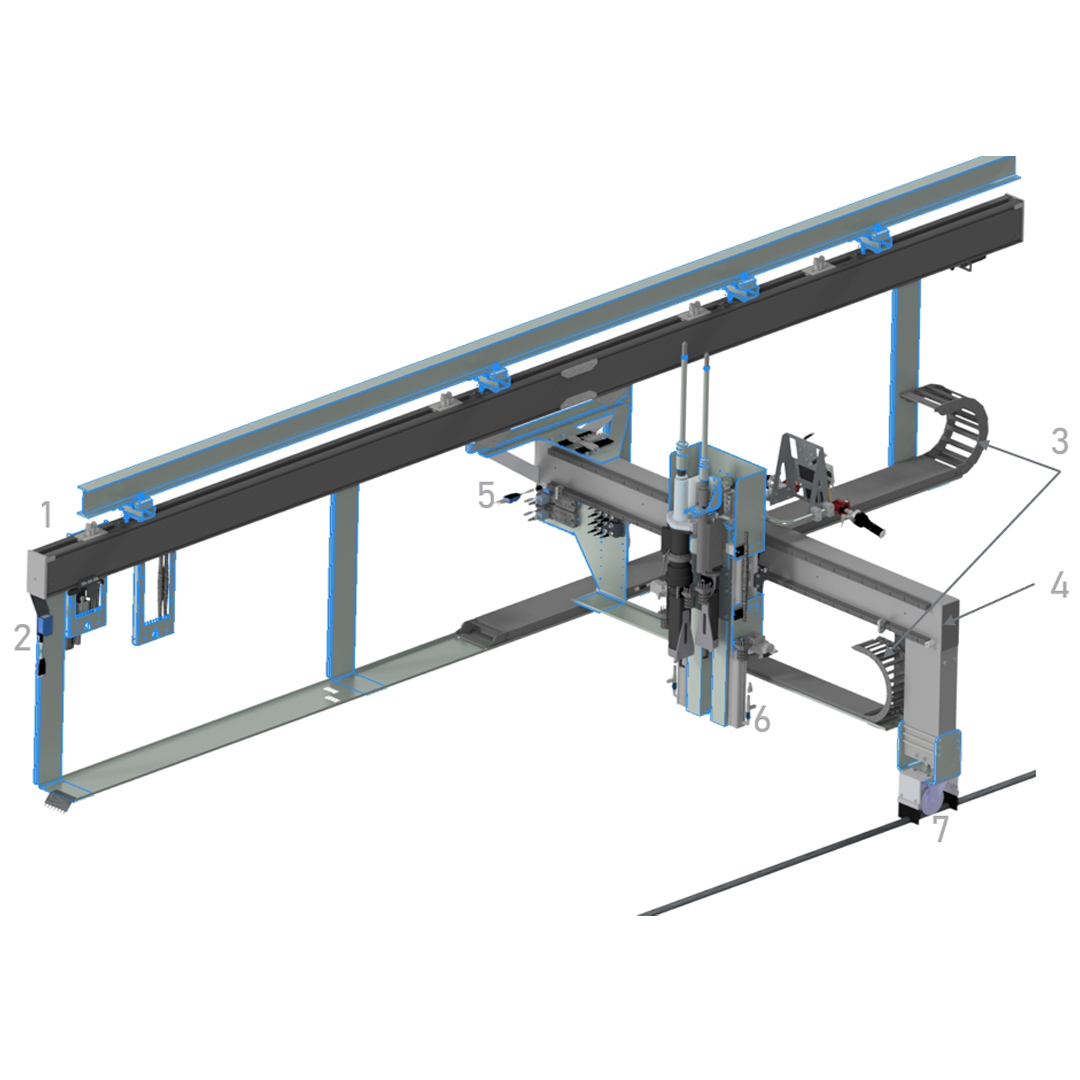

Equipment
Equipment
1
Crane rail
2
Measuring system crane rail
3
Energy supply
4
Cross slide
5
Measuring system cross slide
6
Adaptation system
7
Floor-guided guide
Adaptation system

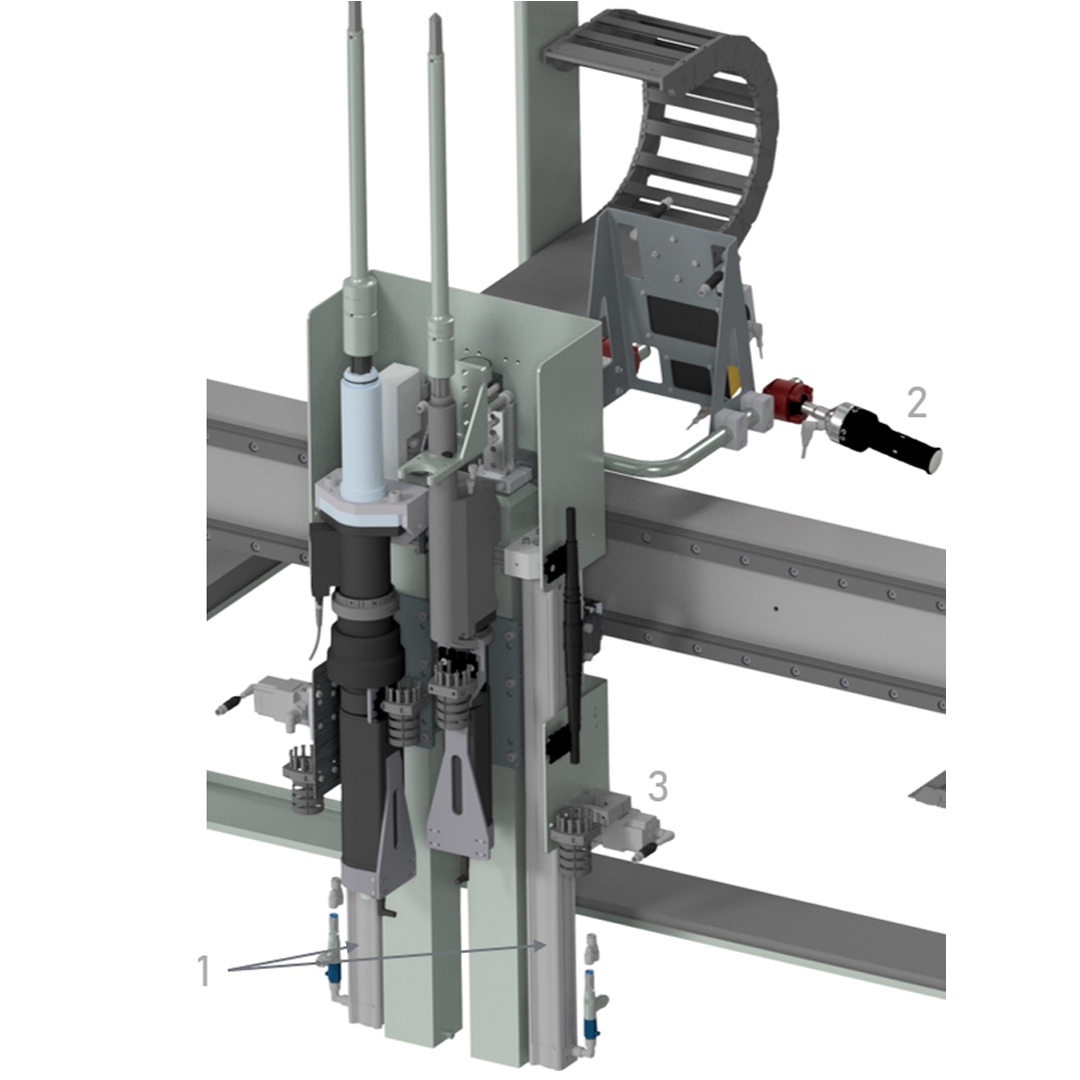

Equipment
Equipment
1
Pneumatic Z-axis feed
2
Operating handle
3
Pneumatic equipment
