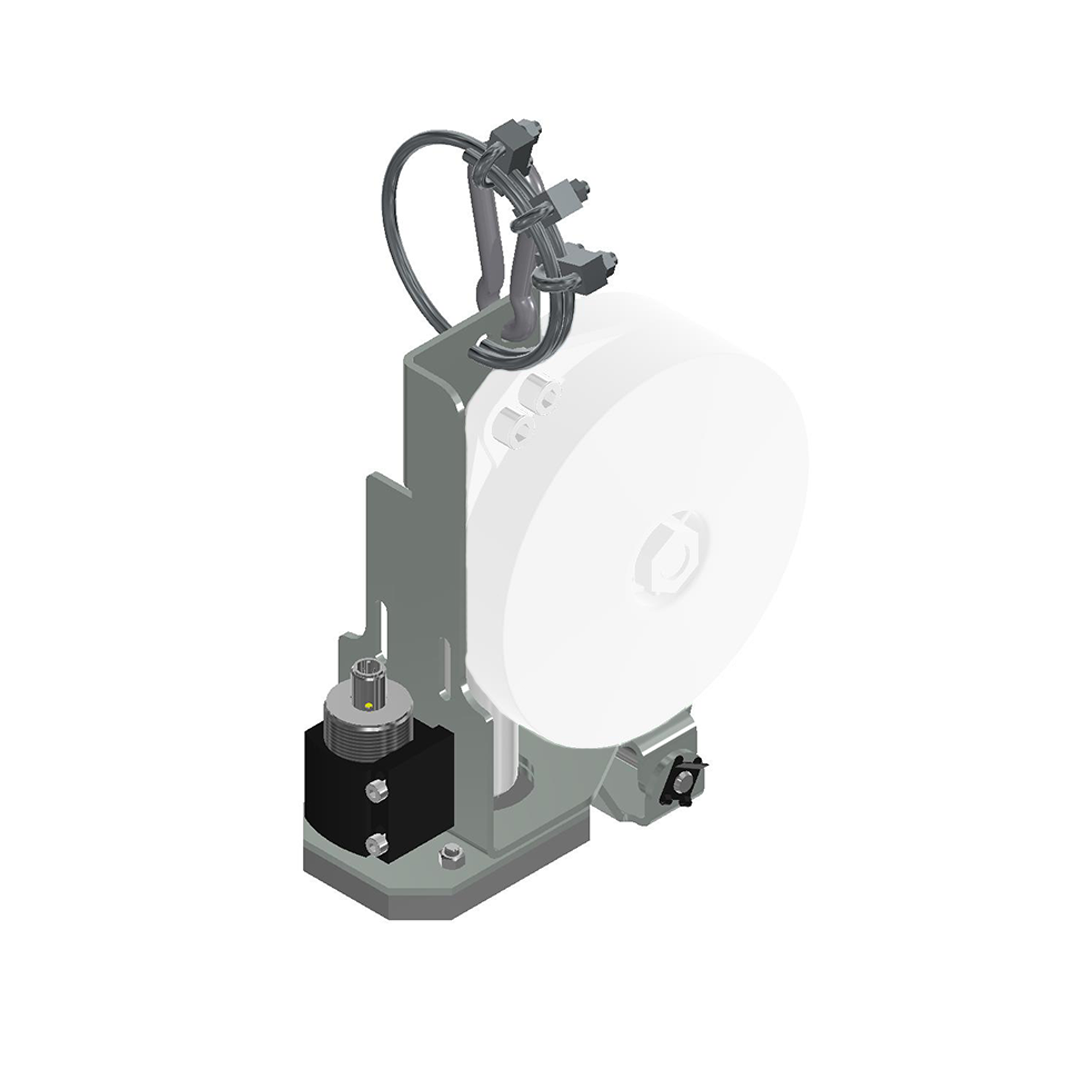

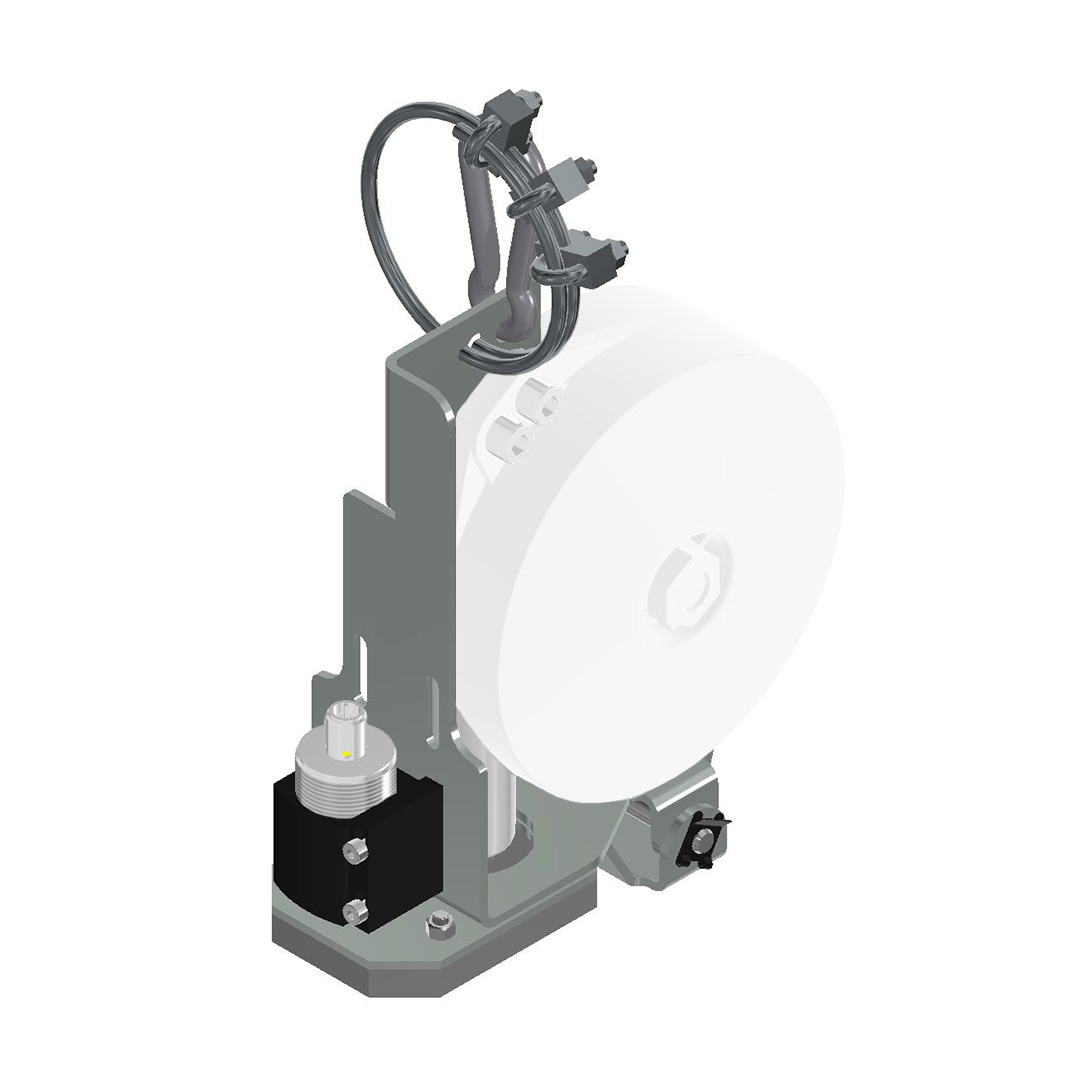

Inductive position query, vertical axis

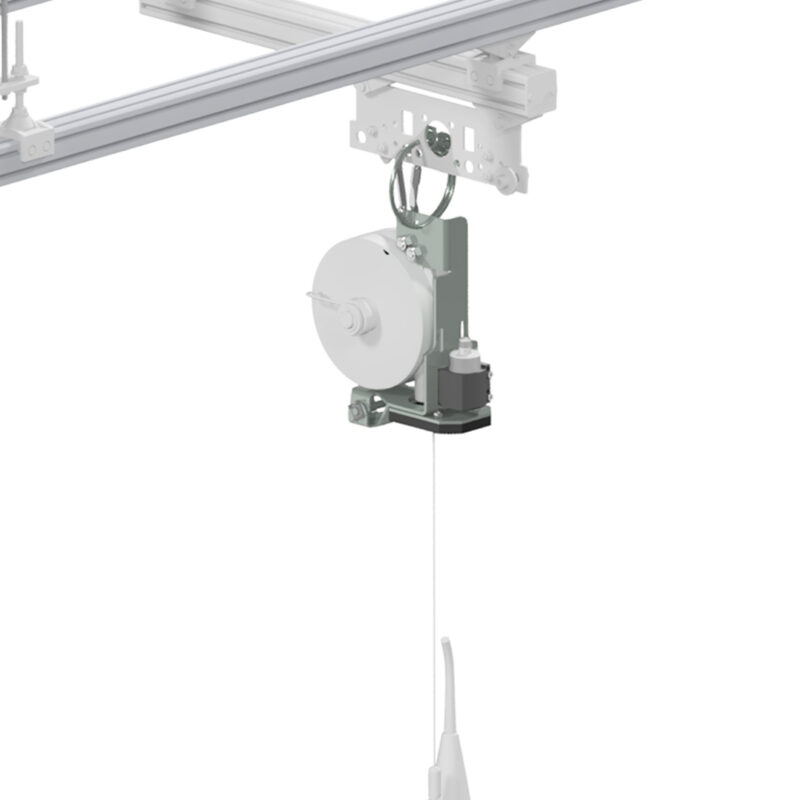

The query of the vertical axis is designed to detect the parking position in combination with spring tension. The query is suitable for roller-units and for carbo-arms with horizontal connection. The end position can be adjusted continuously via the adjustable buffer on the rope of the spring tension. The clamping bracket with integrated stop is for proximity switches d30. The spring tension from the tecna brand, types 9336–9340, fits into the query. The query can be mounted via the carabiner.
Additional information
| Weight | 0,95 kg |
|---|---|
| Country of Origin | Germany |
| Customs Tariff Number | 85365019 |
