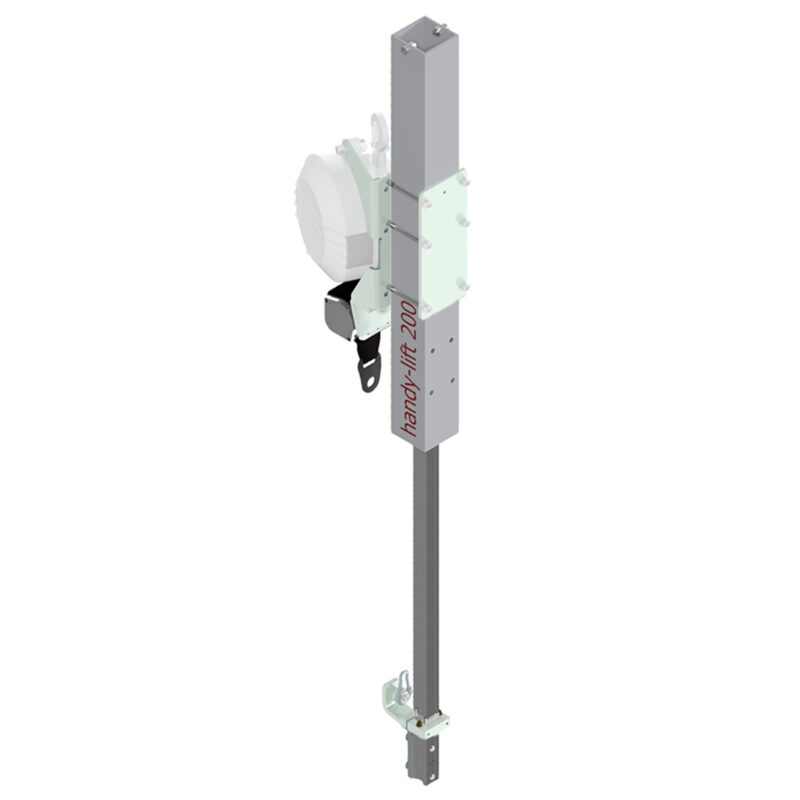

handy-lift 200
Function
The handy-lift 200 is a lifting axis for mounting static loads and torques. The lifting axis absorbs torques in both vertical and horizontal directions.
Features
Strokes in 150 mm increments, standard up to 800 mm (larger strokes available upon request)
Payload range from 5.6 kg to 20.6 kg
Square tube lengths from 600 mm to 1600 mm
Maximum torques: horizontal up to 250 Nm, vertical up to 160 Nm
With increasing stroke, both the maximum load capacity and the torque decrease
A Tecna brand spring tension unit, available separately, serves as weight compensation
Application
The handy-lift 200 is used in assembly processes, primarily in industrial tightening technology.
Additional information
| Weight | N/A |
|---|---|
| Stroke Hz | 500mm, 650mm, 800mm |
| Length square tube L | 600mm, 700mm, 800mm, 900mm, 1000mm, 1100mm, 1200mm, 1300mm, 1400mm, 1500mm, 1600mm |
| Ursprungsland: | Deutschland |
| Zolltarifnummer | 84798997 |
Accessories
Rails | Chassis | Energy supply systems
Parking position fuse
Position monitoring | Position measuring system
Clamping units | Interlocks
Brakes | feeds
toolholder systems
