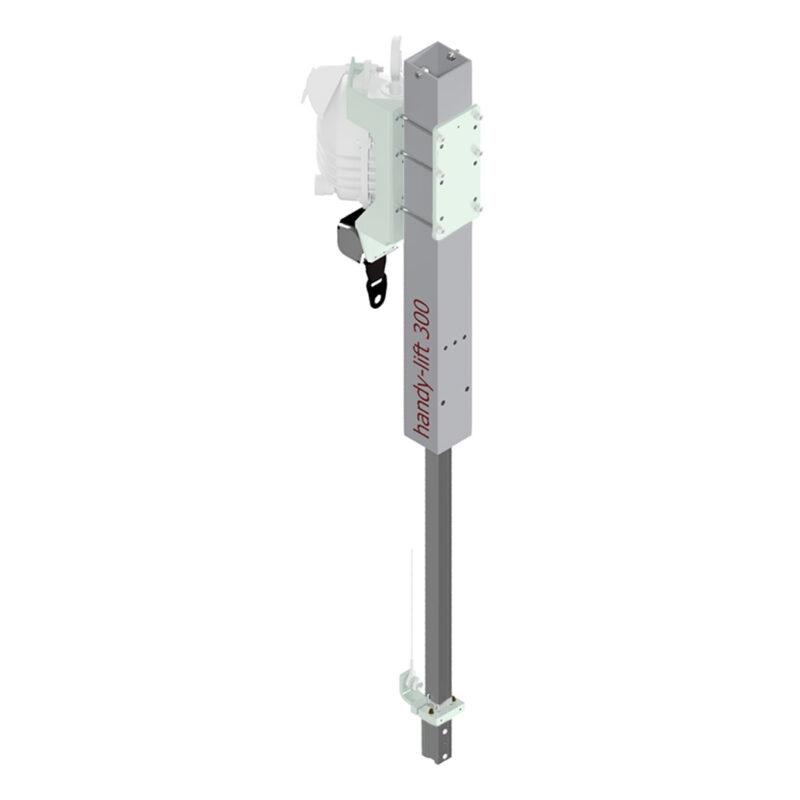

handy-lift 300
Function
The handy-lift 300 is a lifting axis for mounting static loads and torques. The lifting axis accommodates torques in both vertical and horizontal directions.
Features
Stroke in 150 mm increments, standard up to 800 mm (larger strokes available upon request)
Payload range from 8.4 kg to 48.4 kg
Square tube lengths from 600 mm to 1900 mm
Maximum torques horizontal up to 500 Nm, vertical up to 300 Nm
With increasing stroke, both the maximum load capacity and torque decrease
Weight compensation is provided by a Tecna spring tension unit, available separately
Application
The handy-lift 300 is used in assembly processes, primarily in industrial tightening technology.
Additional information
| Weight | N/A |
|---|---|
| Ursprungsland: | Deutschland |
| Zolltarifnummer | 84798997 |
Accessories
Rails | Chassis | Energy supply systems
Parking position fuse
Position monitoring | Position measuring system
Clamping units | Interlocks
Brakes | feeds
toolholder systems
