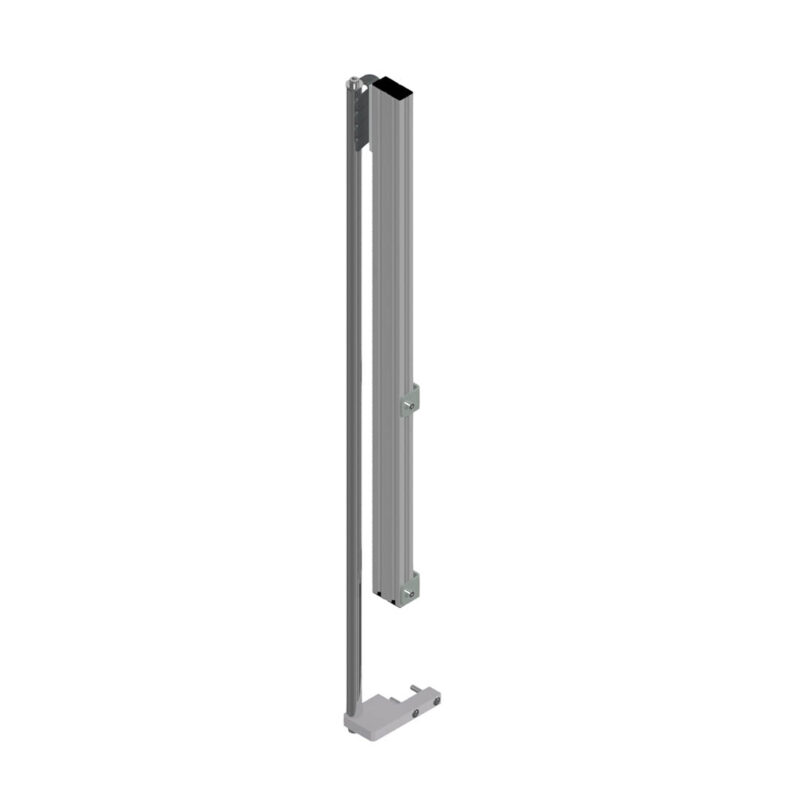

This bundle includes the position query for the vertical axis of the handy-lift 100-500.
The system is ideal for home position queries or monitoring defined working positions. Additionally, it can be easily expanded with additional queries if required.

Assembly

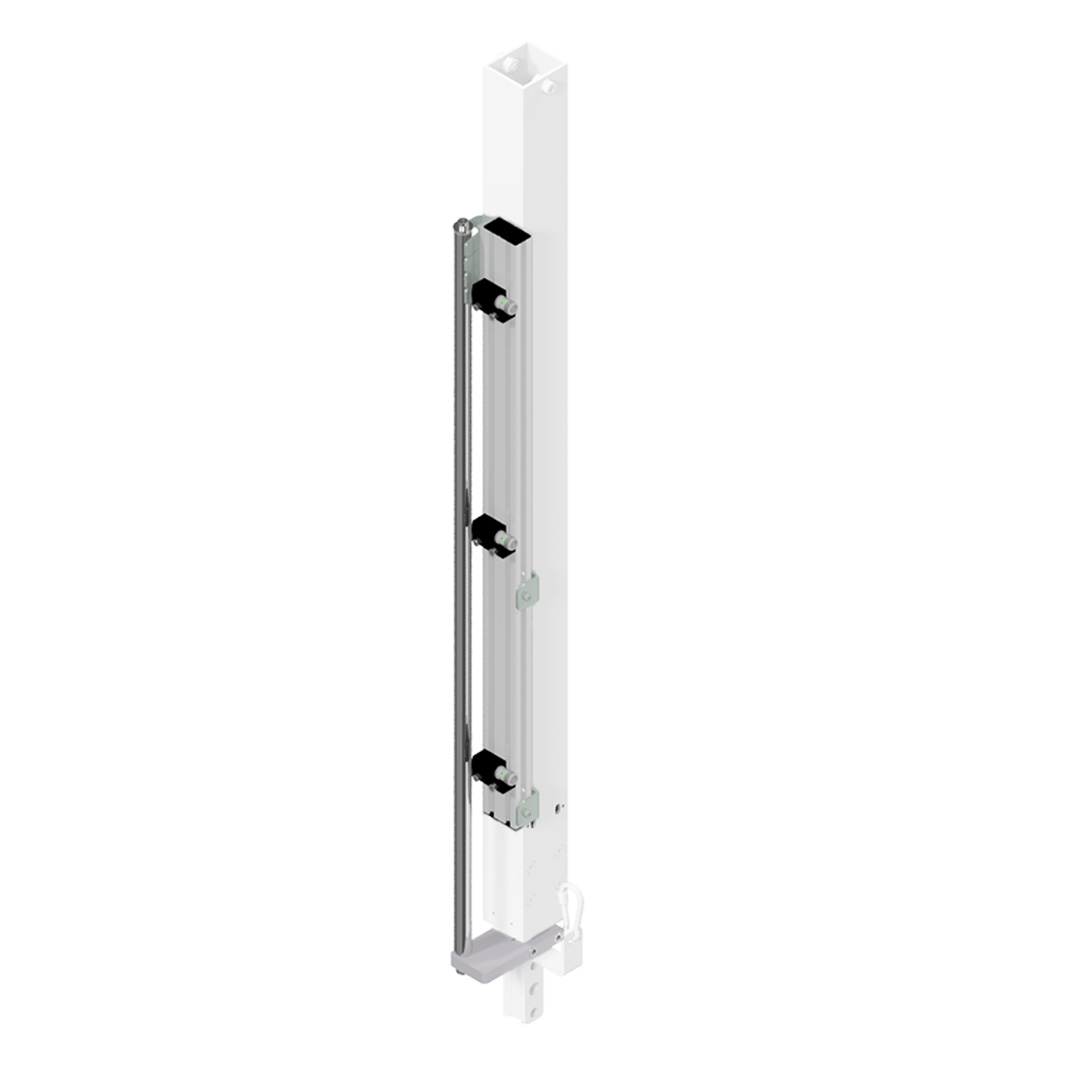

The aluminum profile is mounted using two sheet metal brackets directly to the square tube of the handy-lift 100-500. The profile grooves allow flexible placement of the sensors.
Due to the rigid connection with the device's extension, the shift flag automatically moves during the extension process, changing its position relative to the sensors.

Inductive Proximity Switch (Balluff or IFM)
Detects metallic objects contactlessly and reliably transmits the signal via a PNP normally open output. Suitable for clamping brackets D12.
