This bundle includes the pneumatic feed for the vertical axis of the handy-lift 300-500.
The feed is ideal for pure weight relief of the vertical extension or for supporting the mechanical weight compensation. At the same time, the system can be used for over-pressing axial adjustments on output drives. An integrated hydraulic end-position damper also guarantees smooth braking of the extension and the piston rod.

Assembly

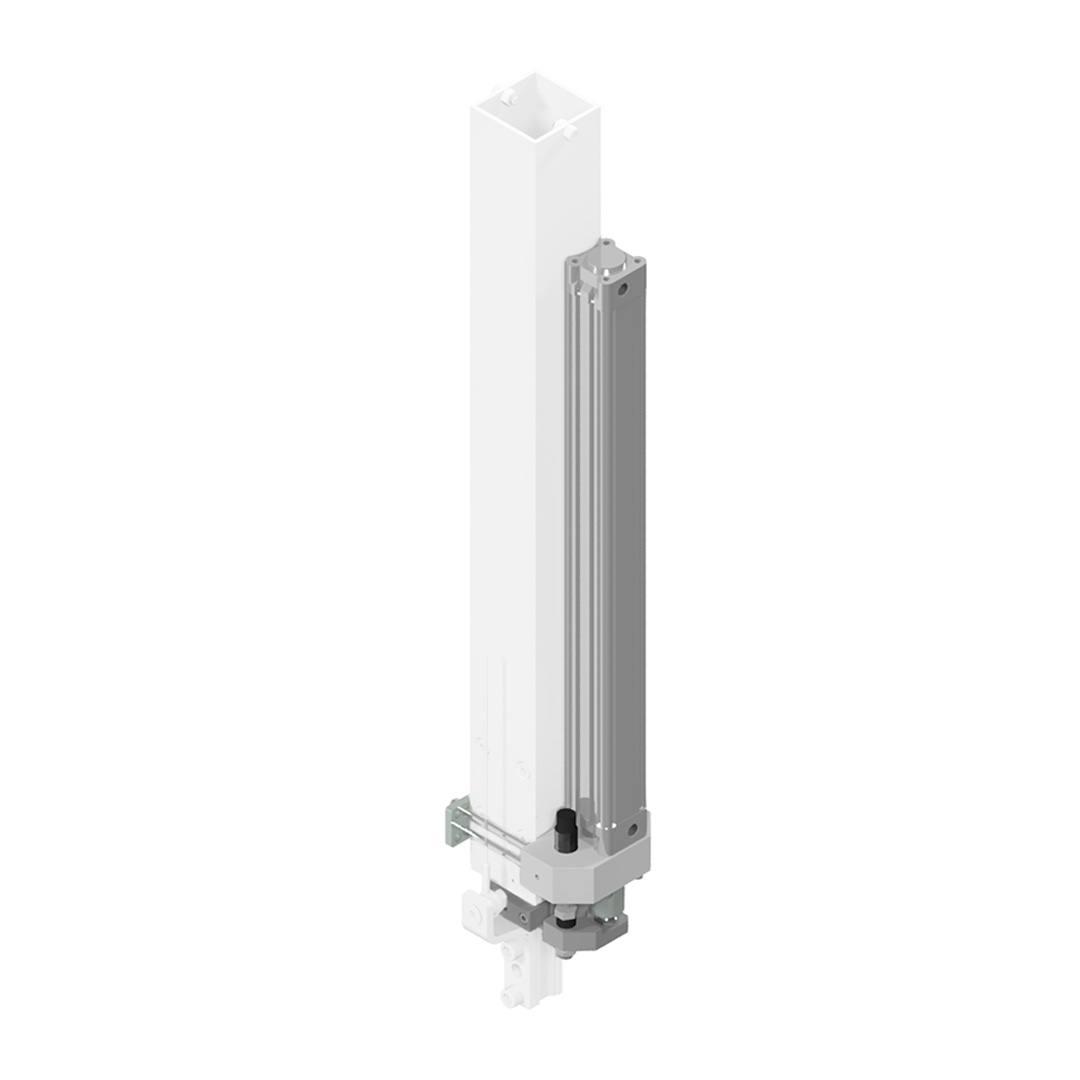

The height-adjustable clamping unit for the cylinder is mounted directly on the square tube of the handy-lift 300-500. The piston rod attached to the vertical extension then ensures the precise extension and retraction of the system.

Pneumatic cylinder
A robust, double-acting pneumatic cylinder with a piston diameter of 32 mm or 40 mm is used.
