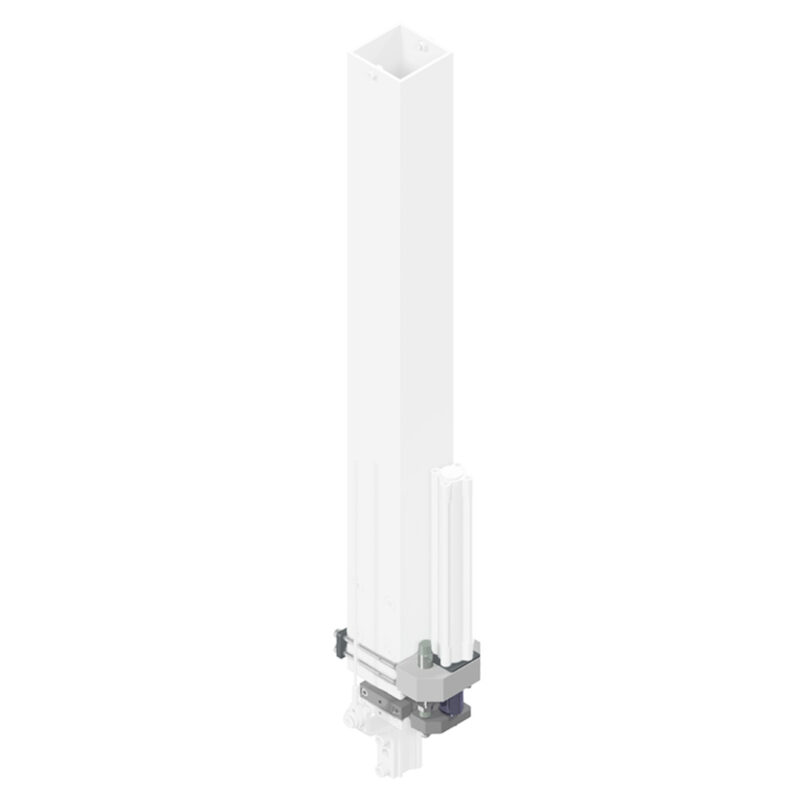

This bundle includes the pneumatic feed for the vertical axis of the handy-lift 500.
The feed is ideal for pure weight relief of the vertical extension or for supporting the mechanical weight compensation. At the same time, the system can be used for over-pressing axial adjustments on output drives. An integrated hydraulic end-position damper also guarantees smooth braking of the extension and the piston rod.

Assembly

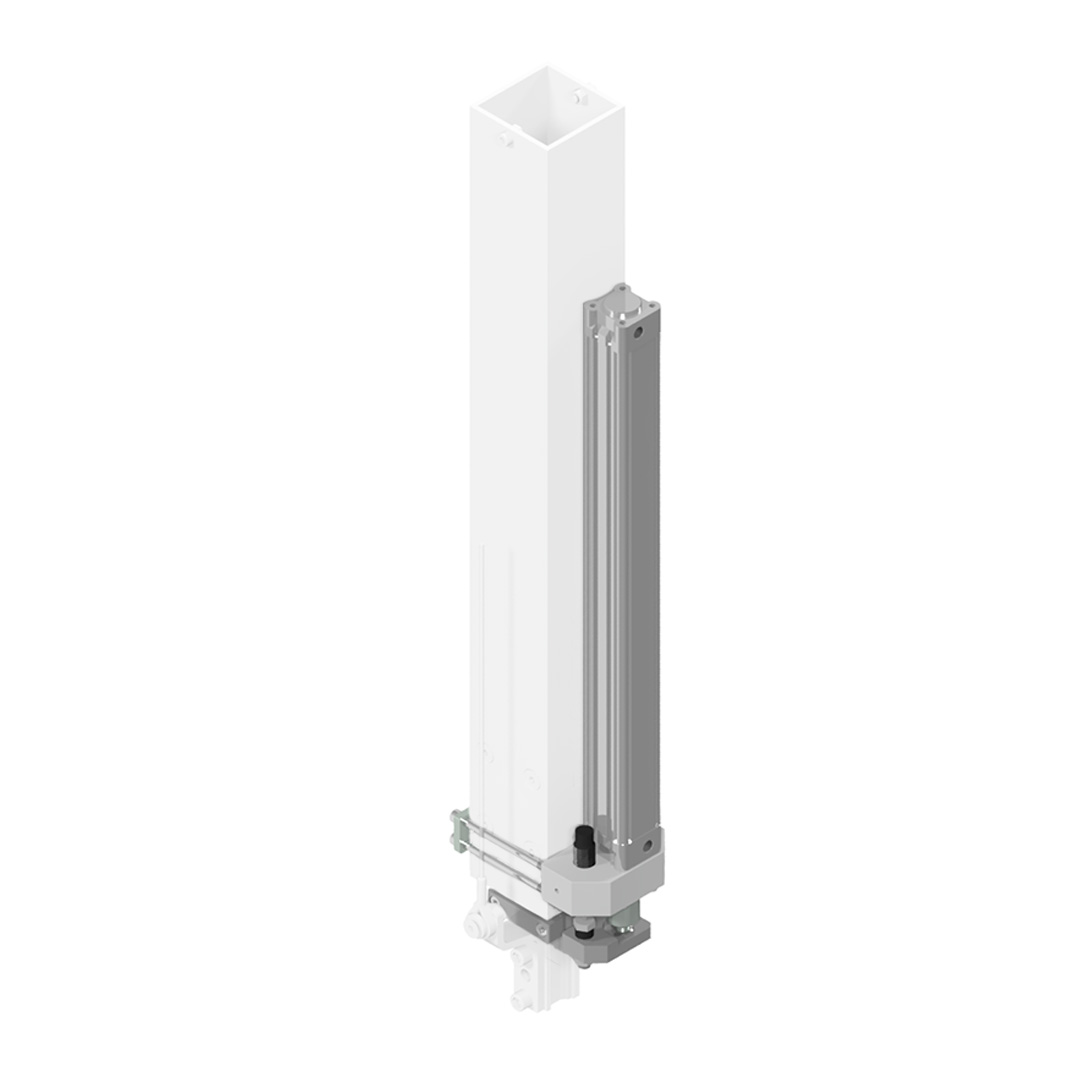

The height-adjustable clamping unit for the cylinder is mounted directly on the square tube of the handy-lift 500. The piston rod attached to the vertical extension then ensures the precise extension and retraction of the system.

Pneumatic cylinder
A robust, double-acting pneumatic cylinder with a piston diameter of 32 mm or 40 mm is used.
