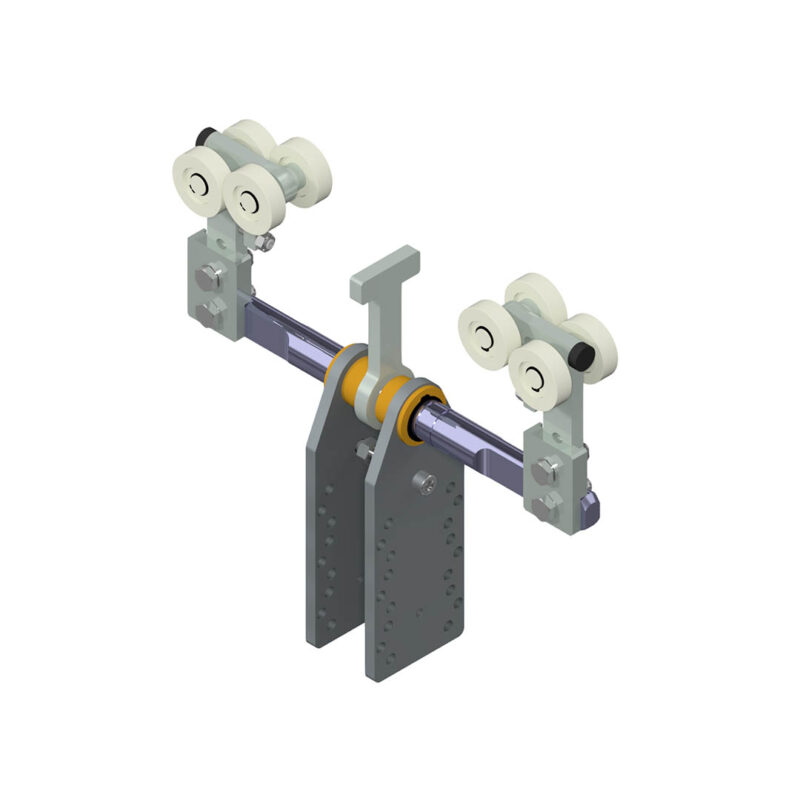

Single track trolley
Function
The trolley is used to move a handy-lift system in a single track eepos rail one. It enables the movement of the system in the rail and supports a pendulum movement transverse to the direction of travel.
Features
Mounting for handy-lift systems of the 100, 200, 300, and 500 series
Two rollers, each with a counter-pressure roller
End stop buffer integrated as an end stop
Fall protection
Use
It is suitable for applications where a pendulum movement is sufficient to reach bolting points transverse to the rail.
Additional information
| Weight | N/A |
|---|
Accessories
Rails | Chassis | Energy supply systems
Parking position fuse
Position monitoring | Position measuring system
Clamping units | Interlocks
Brakes | feeds
toolholder systems
