Function
The inductive position query serves to detect the parking or default position of the vertical axis in handy-lift systems of series 100 to 500. It ensures that the axis is in the defined end position, thereby enabling safe and trouble-free system operation.

Features
Inductive proximity switch for contactless position queries

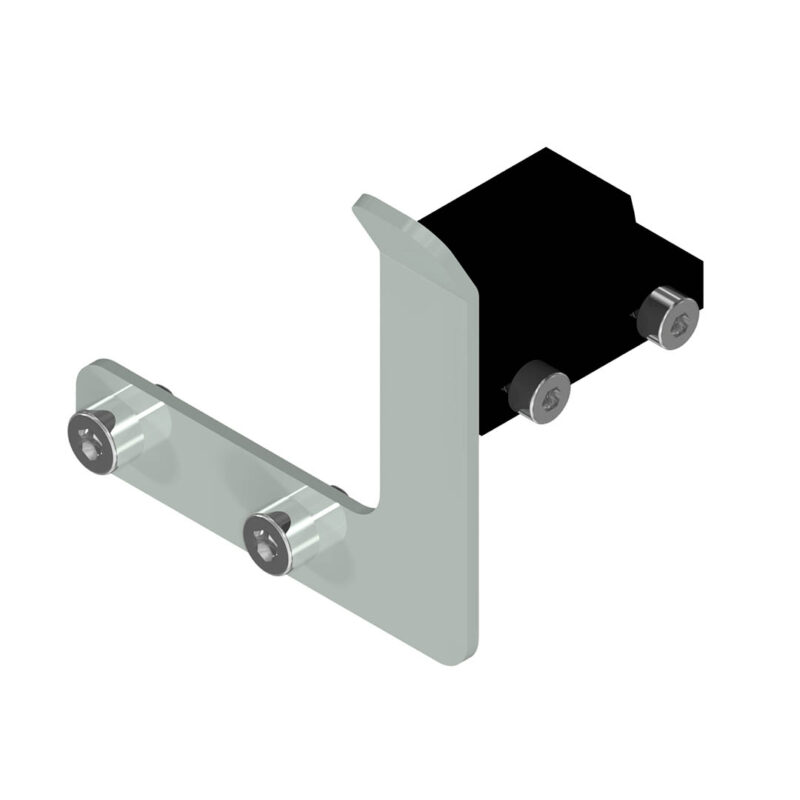

Detection of the end position via a shift flag attached to the vertical axis
Sensor assembly in the clamping bracket directly on the square tube of the handy-lift
Reliable signal transmission via PNP normally open output
Compatible with sensors (Balluff or ifm)
Sensor not included in scope of delivery
Robust and low-maintenance solution for industrial use

Application
The position query is used in applications where the parking or default position of the vertical axis must be reliably detected. It is particularly suitable for collision avoidance in clocked systems, as well as for ensuring clear passages and defined process flows.
