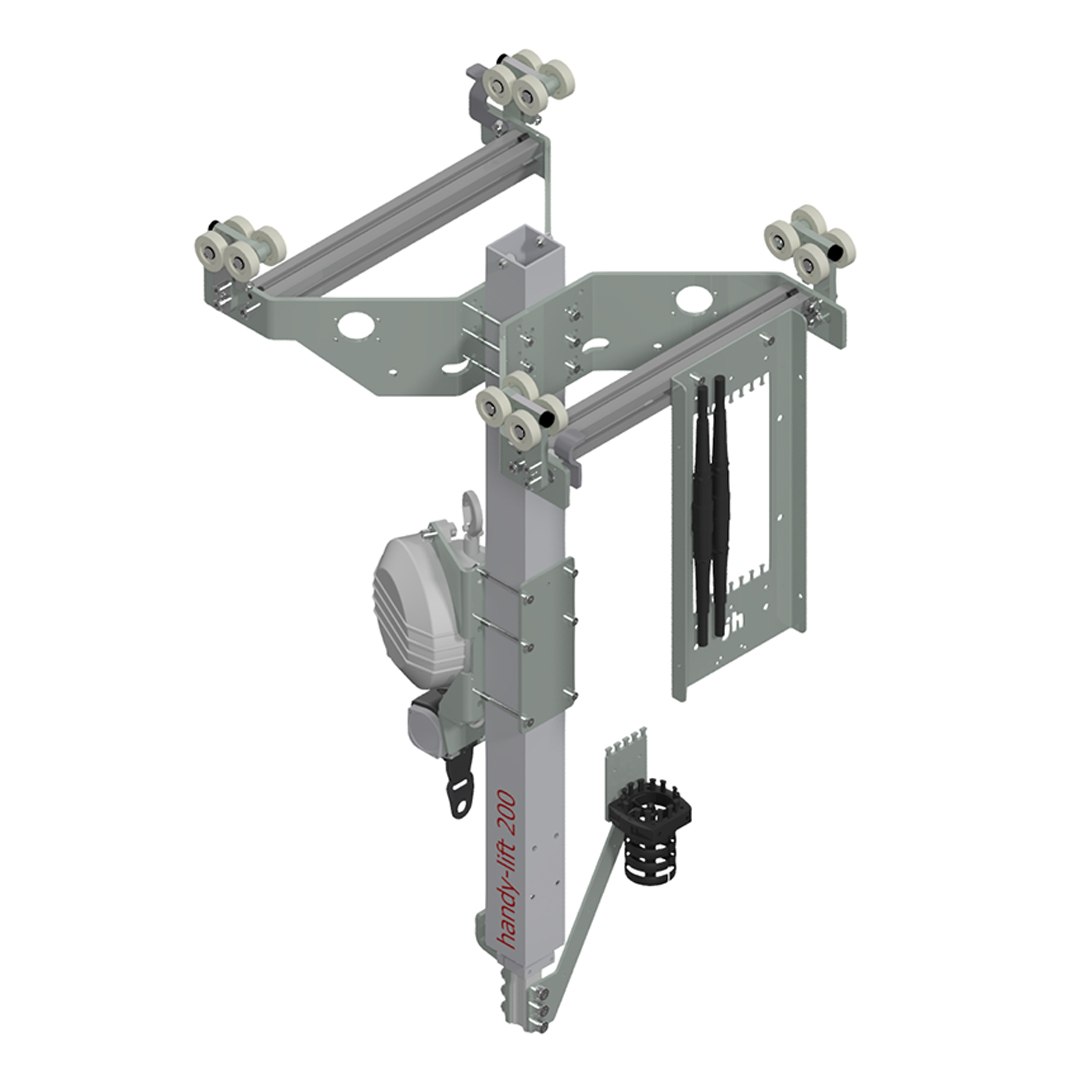

This bundle includes a handy-lift 200 for a double track crane bridge or double lane crane rail. The trolley, transfer plates, guide rail, and square tube (both flexibly selectable in length), as well as the balancer bracket, form the ideal basis for ensuring reliable weight relief and secure torque support for screwing units. The perfectly coordinated Components ensure maximum efficiency, order, and noticeably smooth-running and precise movement in the rails.

Assembly
The handy-lift is inserted with the trolley into the corresponding double lane crane rail or double track crane bridge. For maximum operational safety, two fall protections are attached to the trolley.

Transfer Plates
The transfer plates serve for the organized routing of cables and pneumatic hoses. Integrated strain relief combs and robust fastening to the trolley and the vertical guide rail support structured, strain-relieved, and secure media routing.

Weight Relief and Torque Support
The vertical guide rail with recirculating ball guide is weight-relieved with the help of the balancer and also allows for stepless setting of the stroke range. The lifting axis absorbs the torques in both vertical and horizontal directions.
