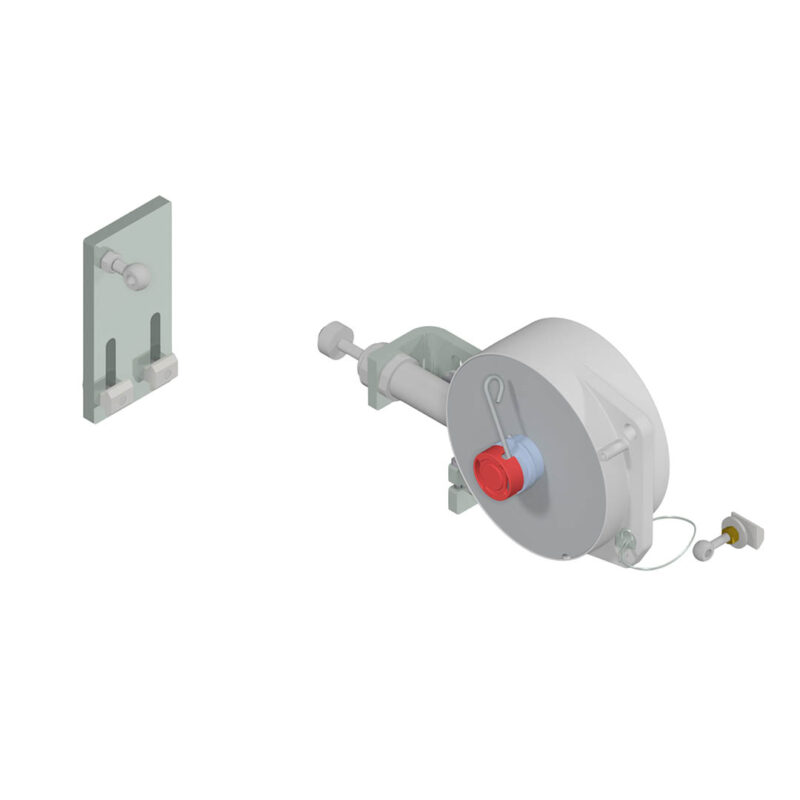

This bundle includes the mechanical retraction for a handy-lift 100–500 in a double lane trolley.
As soon as the operator releases the device, the spring balancer ensures a controlled return to the parking position.
The retraction is used in tight space conditions, to keep aisles clear, or to avoid collisions on cycling conveyor systems (in conjunction with an optional sensor).

Assembly

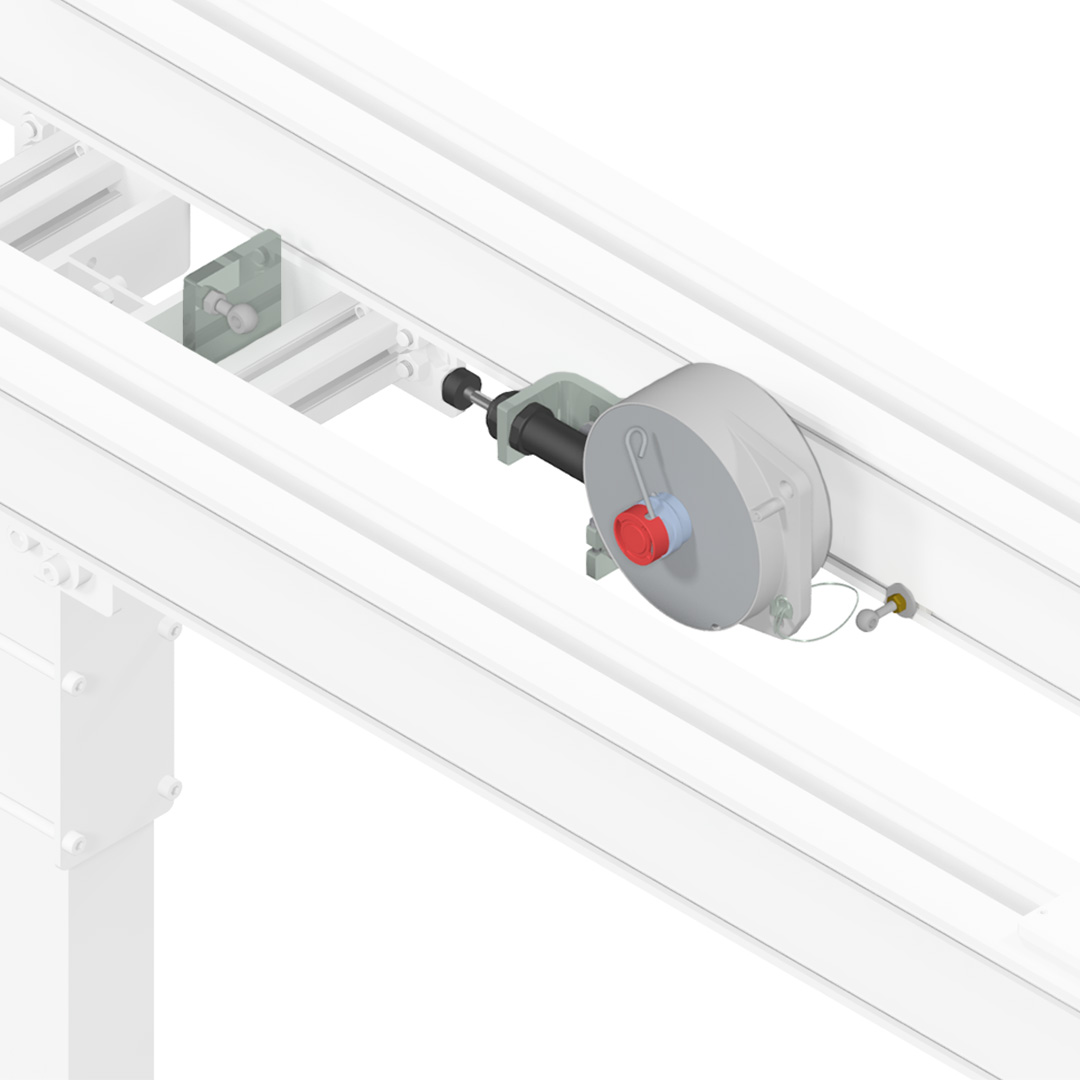

A spring balancer (tecna brand) mounted on the crane rails via a bracket reliably retracts the handy-lift.
Gentle braking is guaranteed by the stop plate attached to the handy-lift's trolley and a hydraulic end-position damper.

Adjustable retraction force
The retraction force is adjustable from 1 kg to 2.5 kg (with a cable extension length of 2,000 mm).
